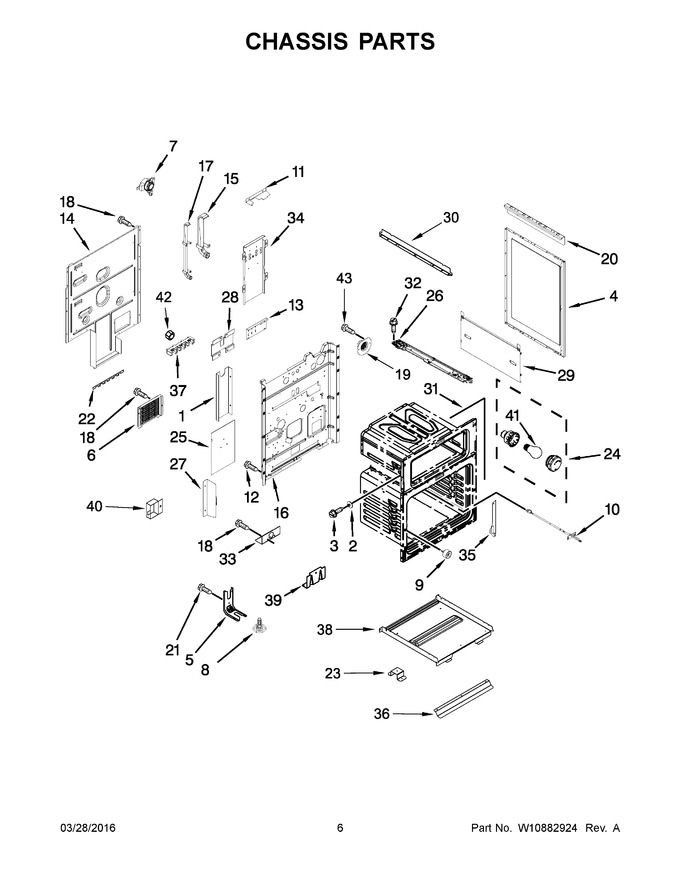

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10332459		Shield, Heat		Appelez-nous	-
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 83.82
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 8.06
4	W10832695		Panel, Side (black)   (Replaces: W10668723)			Immediately	$ 236.76
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
6	W10312612		Cover, Access (terminal Block)				$ 129.42
7	WP7403P899-60		Switch, High Limit   (Replaces: 7403P899-60)			Immediately	$ 211.50
8	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 29.52
9	W10105790		Bumper & Screw				$ 7.41
10	WP7430P044-60		Sensor, Oven   (Replaces: 7430P044-60)			Immediately	$ 175.94
11	W10268559		Cover, Lower Wire		Appelez-nous	-
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	W10332449		Shield, Cord				$ 73.40
14	WPW10261386		Cover, Main Wire   (Replaces: W10261386)				$ 194.70
15	W10337391		Tube, Vent (upper)				$ 72.26
16	W10668730		Back, Main			Immediately	$ 228.74
17	WPW10323793		Tube, Vent (lower)   (Replaces: W10323793)				$ 114.85
18	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
19	W10322408		Adapter, Vent Tube				$ 129.03
20	W10319087		Bracket, U Channel				$ 83.10
21	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
22	8036P012-60		Shield, Power Cord				$ 36.44
23	W10260545		Clip, Retaining				$ 13.82
24	W11594027		Assembly, Light   (Replaces: W10454648)			Immediately	$ 87.01
25	W10311987		Shield, Cord (right)		Appelez-nous	-
26	W11166856		Lock, Rear Mount   (Replaces: W10683517)			Immediately	$ 324.44
27	W10268560		Cover, Wire Lower				$ 73.05
28	7003P104-60		Insulator, Heat Shield		Appelez-nous	-
29	W10538516		Shield, Side Insulation				$ 142.52
30	W10357697		Bracket, Side Panel				$ 24.34
31	W10337392		Gasket, Oven Door (upper)			Immediately	$ 156.70
32	74003975		Screw   (Replaces: 7101P375-60)				$ 14.03
33	W10190166		Bracket, Power Supply				$ 9.70
34	W10261388		Bracket, Terminal				$ 73.34
35	W10410463		Cover, Hinge (left)				$ 98.93
36	W10253470		Bracket, Retaining				$ 81.14
37	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 35.17
38	W10548601		Pan, Element				$ 154.98
39	W10260703		Support, Lower Oven		Appelez-nous	-
40	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
41	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
42	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 8.19
43	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
31A	WPW10269069		Gasket, Oven Door (lower)   (Replaces: W10269069)			Immediately	$ 190.80
35A	W10410461		Cover, Hinge (right)				$ 94.86
4A	W11594131		Panel, Side (white)   (Replaces: W10668724)				$ 189.21
NI	WPW10271637		Insulation, Floor   (Replaces: W10271637)				$ 111.48
NI	W10308393		Insulation, Wrapper				$ 78.00
NI	WPW10322111		Insulation, Back   (Replaces: W10322111)				$ 139.60
NI	WPW10204079		Insulation, Middle   (Replaces: W10204079)				$ 118.72
NI	W11685361		Insulation, Main Front Strip   (Replaces: W10204085)				$ 35.54
NI	W11684900		Insulation, Hidden Bake Pouch   (Replaces: W10272326)				$ 34.63

    View Diagram in Separate Window       Print Part List
