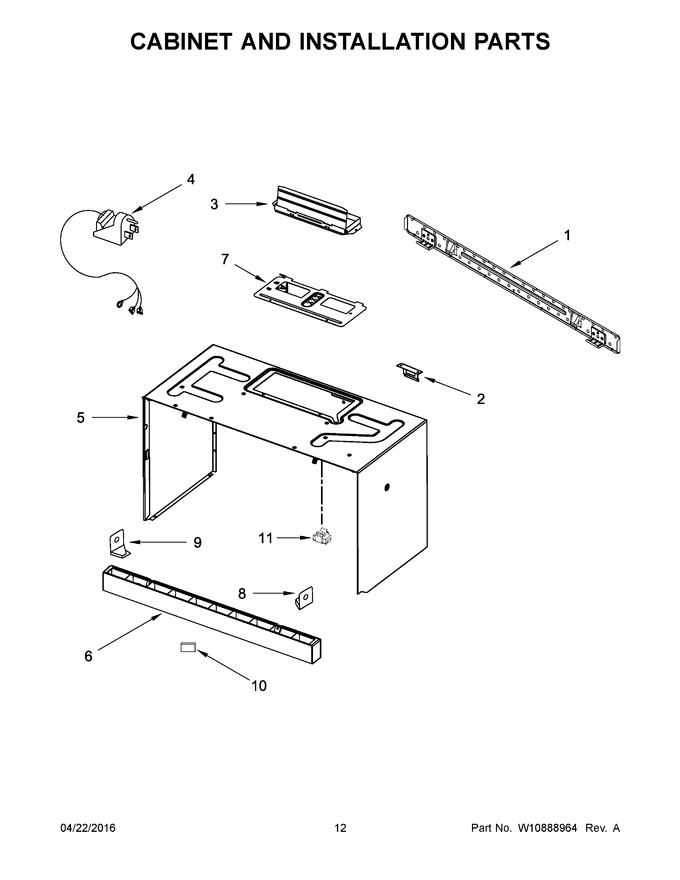

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	8206385		Support, Wire Clip				$ 37.20
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 73.04
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 21.56
5	W10883282		Case, Outer (white)   (Replaces: W10838183)				$ 272.24
6	W10718218		Grille, Vent (stainless)		Appelez-nous	-
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10703282		Vent Grid Holder, Right Side (stainless & White Ice Models)				$ 11.00
9	W11026306		Vent Grid Holder, Left Side (stainless & White Ice Models)   (Replaces: W10703284)			Immediately	$ 7.55
10	W11700249		Badge   (Replaces: W10685340)				$ 70.74
11	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
5A	W10883284		Case, Outer (black)   (Replaces: W10837530)				$ 272.24
6A	W10245217		Grille, Vent (white)				$ 105.98
6B	W10245218		Grille, Vent (black)				$ 104.95
8A	W10810989		Vent Grid Holder, Right Side (black)   (Replaces: W10703283)				$ 10.22
9A	W10830163		Vent Grid Holder, Left Side (black)   (Replaces: W10703285)				$ 14.21
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 7.55
NI	W10872453		Miscellaneous Parts, Harness, Main			Immediately	$ 158.53
NI	W10498567		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer			Immediately	$ 24.55
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 25.08
NI	W10821385		Miscellaneous Parts, Hardware, Installation			Immediately	$ 103.72
