01 - Cover Sheet


02 - Control Panel And Latch Parts


03 - Tub Parts


04 - Door And Toe Panel Parts


05 - Frame Parts


06 - Pump And Sprayarm Parts


07 - Dishrack Parts


08 - Optional Parts (not Included)

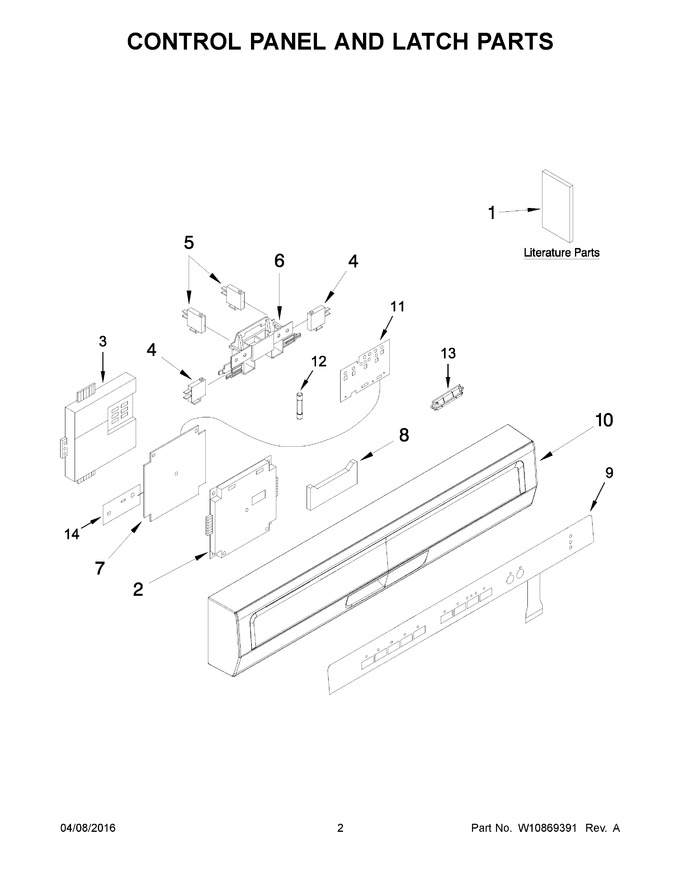

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10518038		Installation Instructions		Appelez-nous	-
2	W10567583		Cover, Control Main		Appelez-nous	-
3	W10567584		Base, Control Main				$ 30.79
4	W10859566		Microswitch   (Replaces: W10567585)				$ 29.97
5	WPW10567586		Switch, Breakwater (left)   (Replaces: W10567586)				$ 62.97
6	W10567588		Bolt, Latch				$ 40.96
7	W10884507		Control, Electronic Main		Appelez-nous	-
8	W10567590		Handle		Appelez-nous	-
9	W10884510		Overlay (black)		Appelez-nous	-
10	W10558072		Console (black)				$ 145.90
11	W10891576		Control, Electronic Small   (Replaces: W10884508)		Appelez-nous	-
12	W10487251		Fuse				$ 27.35
13	W10883770		Cover, Small Pcb		Appelez-nous	-
14	W10883771		Sensor, Pcb		Appelez-nous	-
10A	WPW10558071		Console (white)   (Replaces: W10558071)				$ 183.06
1A	W10518033		Use & Care Guide		Appelez-nous	-
5A	W10567587		Switch, Breakwater (right)				$ 40.68
9A	W10884509		Overlay (white)		Appelez-nous	-
