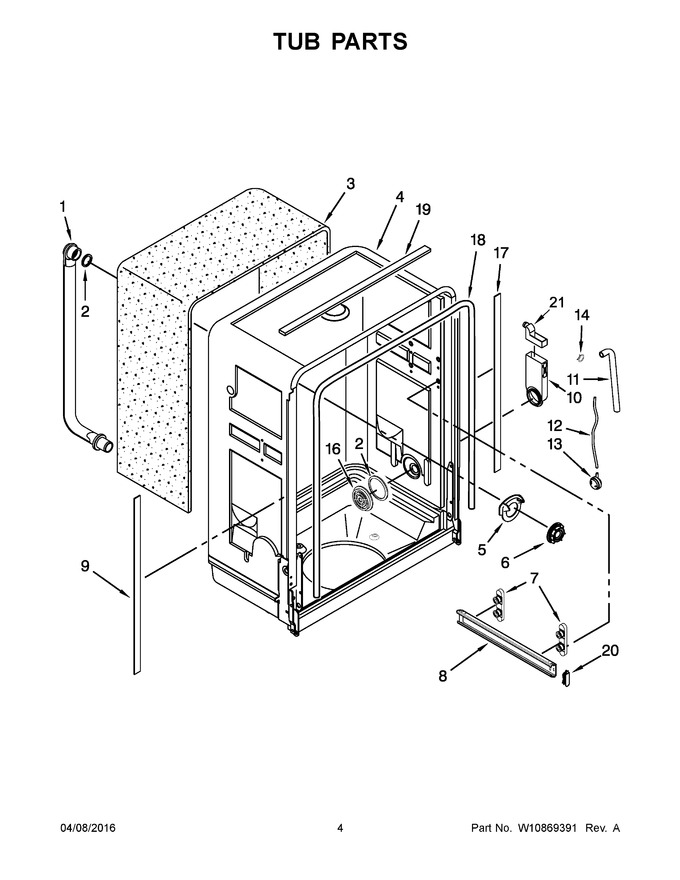

03 - Tub Parts


04 - Door And Toe Panel Parts


05 - Frame Parts


06 - Pump And Sprayarm Parts


07 - Dishrack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10717675		Tube, Feed				$ 120.50
2	W10567637		Gasket				$ 34.18
3	WPW10567495		Shield, Sound   (Replaces: W10567495)				$ 138.67
4	W10567498		Tub				$ 410.12
5	W10567636		Guide				$ 21.98
6	W10567635		Nut, Feed Tube				$ 16.61
7	W11685772		Wheel, Tub   (Replaces: W10567558)		Appelez-nous	-
8	W10567559		Track				$ 68.98
9	W10567578		Trim, Tank Left (black)				$ 77.36
10	W10567624		Inlet, Water		Appelez-nous	-
11	W10717671		Hose, Inlet		Appelez-nous	-
12	W10567651		Hose, Pressure Switch		Appelez-nous	-
13	W10567650		Switch, Pressure				$ 96.31
14	W10567621		Clamp				$ 37.69
15	W10789434		Clamp   (Replaces: W10567646)			Immediately	$ 12.96
16	W10567626		Inlet, Bezel		Appelez-nous	-
17	W10567564		Trim, Tank Right Hand (black)				$ 63.88
18	W10567557		Gasket, Tub				$ 172.58
19	W10567504		Trim, Tank Top (black)				$ 94.66
20	W11165171		Stop, Track   (Replaces: W10567560)				$ 16.68
21	W10567622		Cover, Inlet		Appelez-nous	-
17A	W10567562		Trim, Tank Right Hand (white)				$ 93.32
19A	W10567503		Trim, Tank Top (white)		Appelez-nous	-
9A	W10567577		Trim, Tank Left (white)				$ 93.85
