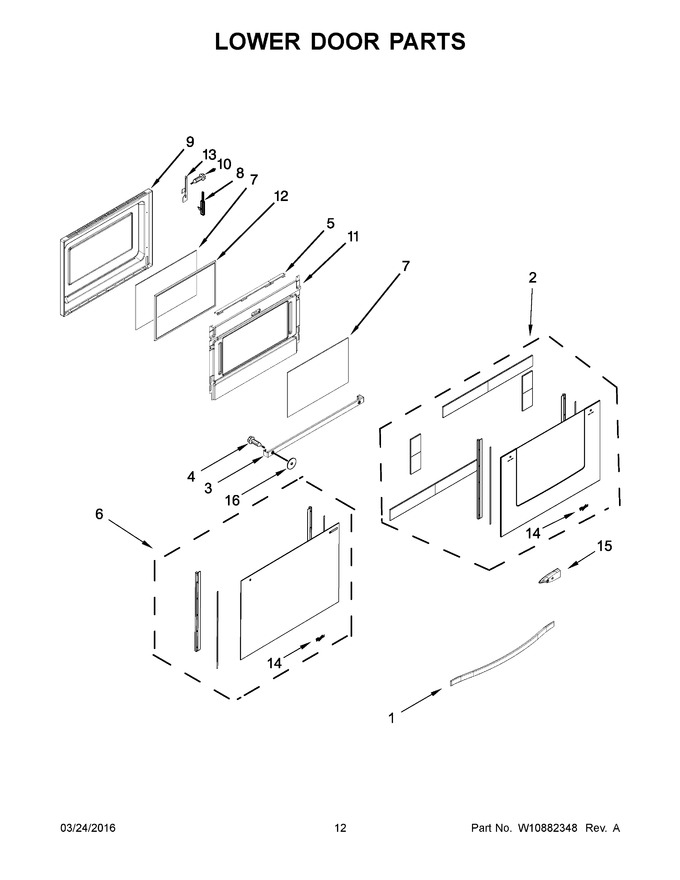

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300490		Handle, Door (black)			Immediately	$ 156.75
2	W10674127		Assembly, Door (stainless)		Appelez-nous	-
3	WPW10294695		Bracket, Handle (black & White Models)   (Replaces: W10294695)				$ 147.02
4	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
5	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 197.39
6	W10677242		Assembly, Door (black)   (Replaces: W10674125)		Appelez-nous	-
7	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 141.95
8	WPW10335434		Hinge, Door (left)   (Replaces: W10335434)			Immediately	$ 102.90
9	WPW10272698		Lining, Door   (Replaces: W10272698)				$ 345.72
10	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
11	W10340464		Retainer, Insulation				$ 289.80
12	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 106.43
13	WPW10272329		Receiver (left)   (Replaces: W10272329)				$ 81.11
14	W11178521		Badge (grey)   (Replaces: W10481433)			Immediately	$ 63.13
15	WPW10410341		Standoff, Handle (black (stainless Models Only))   (Replaces: W10410341)				$ 80.75
16	7109P084-60		Washer, Fiber		Appelez-nous	-
13A	WPW10272328		Receiver (right)   (Replaces: W10272328)				$ 90.04
14A	W11178521		Badge (white)   (Replaces: W10481434)			Immediately	$ 63.13
1A	W10300489		Handle, Door (white)			Immediately	$ 244.88
1B	WPW10618239		Handle, Door (stainless)   (Replaces: W10254687)			Immediately	$ 175.54
3A	W10575689		Bracket, Handle (stainless Models)				$ 145.99
6A	W10677243		Assembly, Door (white)   (Replaces: W10674126)		Appelez-nous	-
8A	WPW10335433		Hinge, Door (right)   (Replaces: W10335433)				$ 104.99
