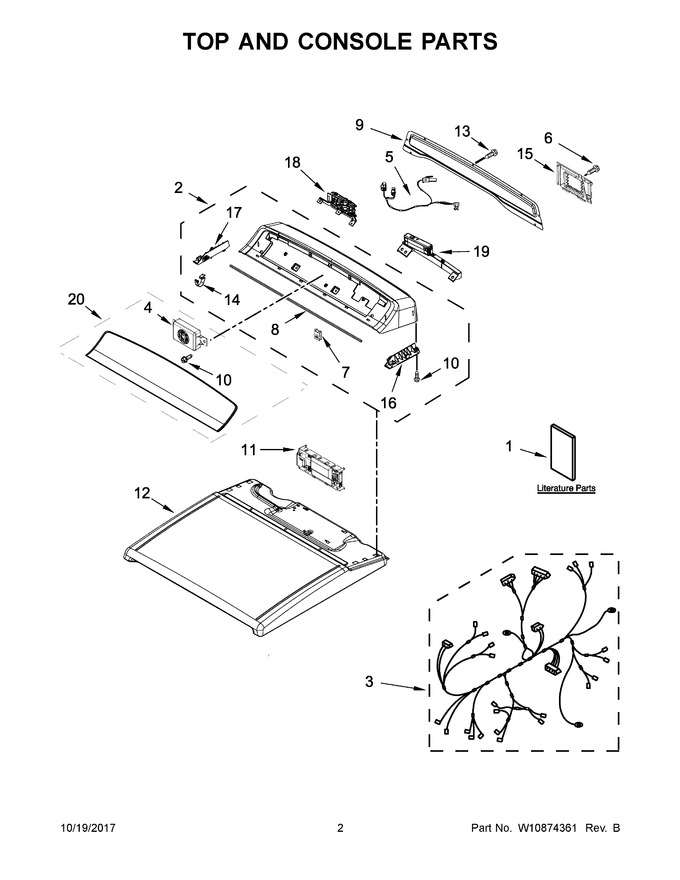

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11101355		Installation Instructions		Appelez-nous	-
2	W11116871		Console (chrome Shadow)   (Replaces: W10682652)				$ 615.63
3	W10721104		Wiring Harness, Main		Appelez-nous	-
4	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
5	W10721103		Harness, User Interface		Appelez-nous	-
6	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)				$ 7.36
11	WPW10786067		Control, Electronic   (Replaces: W10786067)				$ 335.22
12	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 322.97
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 93.64
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 138.27
18	W11195382		Assembly, Power Meter   (Replaces: W10905617)		Appelez-nous	-
19	W10833064		Assembly, Wifi Module   (Replaces: W10722860)		Appelez-nous	-
20	W11195381		Fascia   (Replaces: W11034521)		Appelez-nous	-
1A	W10722883		Owners Manual		Appelez-nous	-
1B	W10830031		Tech Sheet		Appelez-nous	-
1C	W10815040		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
