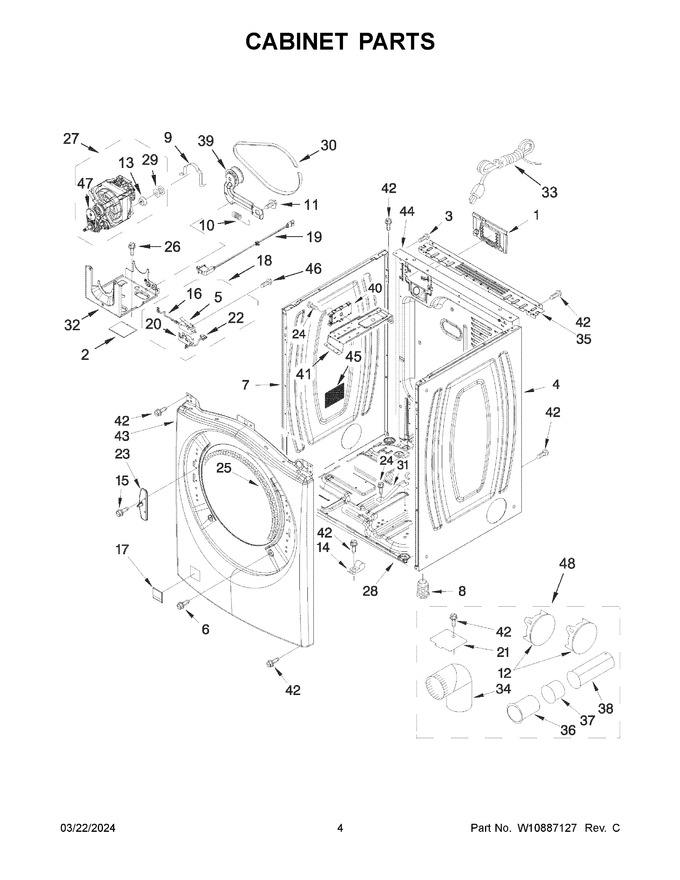

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 2 | W11113654 | Pad, Sound (Replaces: W10836094) |
|
$ 23.29 | |||||
| 3 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 4 | W11310043 | Panel, Side (r.h.) (white) (Replaces: W10469589) |
|
$ 308.13 | |||||
| 5 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 104.11 | |||||
| 6 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 7 | W11233548 | Panel, Side (l.h.) (white) (Replaces: W10468495) |
|
$ 261.33 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | WPW10404617 | Plug, Multivent (midnight Grey) (Replaces: W10404617) |
|
$ 75.58 | |||||
| 13 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 14 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 15 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 16 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 17 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 16.50 | |||||
| 18 | W11247665 | Switch, Assembly (Replaces: W11233966) |
|
$ 27.72 | |||||
| 19 | WPW10350906 | Assembly, Door Switch (Replaces: W10350906) |
|
Immediately | $ 81.49 | ||||
| 20 | W11247665 | Bracket, Switch (Replaces: W11159569) |
|
$ 27.72 | |||||
| 21 | WPW10354249 | Plate, Cover (Replaces: W10354249) |
|
$ 9.41 | |||||
| 22 | 8539892 | Wire, Motor To Belt Switch |
|
- | |||||
| 23 | WPW10208250 | Strike, Door (Replaces: W10208250) |
|
$ 43.86 | |||||
| 24 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 25 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 26 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 27 | W11234001 | Assembly, Motor 60 Hz. (Replaces: W10396034) |
|
Immediately | $ 433.87 | ||||
| 28 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 105.32 | ||||
| 31 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | W11628810 | Cord, Power (Replaces: W10869142) |
|
$ 101.90 | |||||
| 34 | WPW10416072 | Elbow (Replaces: W10416072) |
|
$ 28.16 | |||||
| 35 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 95.95 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (short) (Replaces: W10331278) |
|
$ 82.90 | |||||
| 38 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 39 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 40 | W11537223 | Board, Control (Replaces: W10847946) |
|
Immediately | $ 357.17 | ||||
| 41 | W10259611 | Bracket, Control |
|
$ 127.30 | |||||
| 42 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 43 | W10363953 | Panel, Front (white) |
|
$ 182.23 | |||||
| 44 | W10487431 | Panel, Rear |
|
$ 190.32 | |||||
| 45 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 30.95 | |||||
| 46 | WP98129 | Screw (Replaces: 98129) |
|
$ 8.18 | |||||
| 47 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| 48 | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 89.96 |
