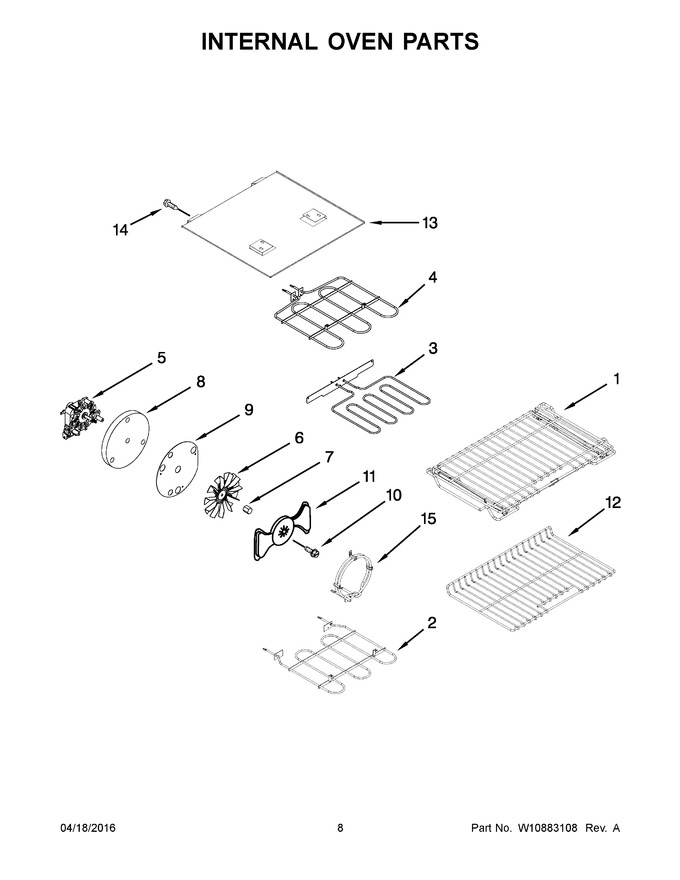

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10570870 | Rack, Oven (telescoping) (Replaces: W10570870) |
|
$ 367.72 | |||||
| 2 | WPW10611615 | Element, Broil (lower) (Replaces: W10249979) |
|
Immediately | $ 204.96 | ||||
| 3 | W11662148 | Element, Bake (upper & Lower) (Replaces: W10249981) |
|
Immediately | $ 122.99 | ||||
| 4 | W10317476 | Element, Broil (upper) |
|
$ 204.96 | |||||
| 5 | W11235883 | Motor, Convection (Replaces: W10631505) |
|
$ 222.15 | |||||
| 6 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 7 | W10794042 | Nut, Acorn (Replaces: W10631504) |
|
$ 13.14 | |||||
| 8 | W10274268 | Insulation, Convection Motor |
|
$ 82.68 | |||||
| 9 | W10339476 | Plate, Insulation |
|
$ 80.70 | |||||
| 10 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 11 | 8303962BU | Cover, Fan |
|
$ 354.03 | |||||
| 12 | W11550107 | Rack, Oven (Replaces: W10570887) |
|
$ 117.11 | |||||
| 13 | W10319762 | Shield, Broil |
|
$ 141.61 | |||||
| 14 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 15 | W10271639 | Element, Convection (240vac) |
|
$ 296.84 |
