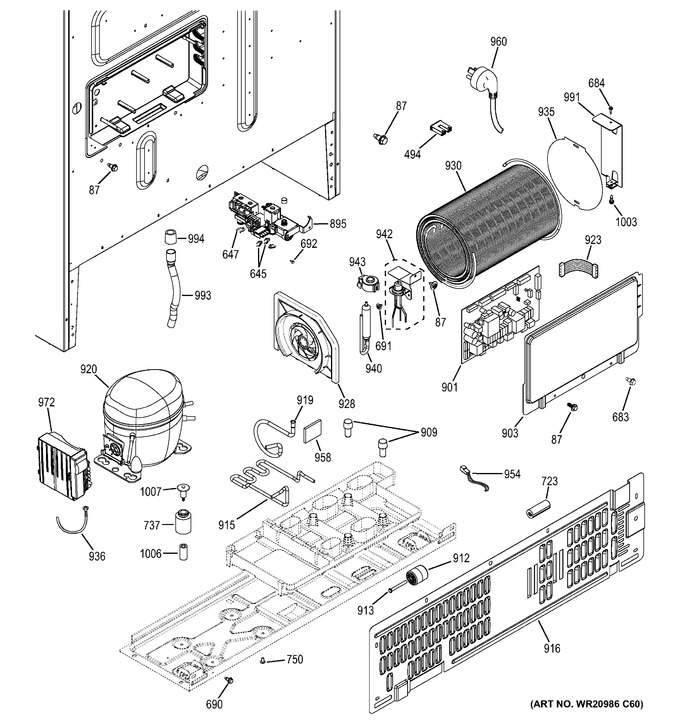

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 87 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 494 | WD1X1459 | Insulator Hsng Term |
|
- | |||||
| 645 | WR01X11040 | Quick Clip Conn 5/16 |
|
- | |||||
| 647 | WR01X11041 | Quick Clip Connector 1/4 |
|
- | |||||
| 683 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 684 | WR01X10635 | Scr 8-32 Ca Ihxw .625 S |
|
- | |||||
| 690 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 691 | WR01X10897 | Scr 12-24tt Bht20 .700 S |
|
- | |||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 723 | WR14X10055 | Grommet Tubing Slit |
|
- | |||||
| 737 | WR02X13719 | Grommet Compressor |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr 1/2 |
|
- | |||||
| 895 | WR57X20873 | Valve Double Iw Asm |
|
- | |||||
| 901 | WR55X26286 | Board Asm Main Reflashed |
|
- | |||||
| 903 | WR02X25126 | Cover Mainboard |
|
- | |||||
| 909 | WR02X13668 | Support Condenser |
|
- | |||||
| 912 | WR02X13685 | Wheel |
|
- | |||||
| 913 | WR01X11008 | Axle Wheel |
|
- | |||||
| 915 | WR84X23630 | Jumper Comp Discharge |
|
- | |||||
| 916 | WR82X10127 | Cover Access |
|
- | |||||
| 919 | WR87X23634 | Tube Suction Jumper |
|
- | |||||
| 920 | WR87X24183 | Inverter Compressor Emb |
|
- | |||||
| 923 | WR55X24526 | Harness Personality |
|
- | |||||
| 928 | WR60X23363 | Fan Gasket Asm |
|
- | |||||
| 930 | WR84X10115 | Condenser Asm Formed |
|
- | |||||
| 935 | WR17X13045 | Baffle Cond Air |
|
- | |||||
| 936 | WR23X10748 | Harness Ground |
|
- | |||||
| 940 | WR86X10089 | Dryer Filter |
|
- | |||||
| 942 | WR86X10094 | Valve Body Asm |
|
- | |||||
| 943 | WR86X10091 | Coil 3 Way Valve |
|
- | |||||
| 954 | WR23X10768 | Harness Doghouse |
|
- | |||||
| 958 | WR02X13724 | Mastic Sound Deadening |
|
- | |||||
| 960 | WR23X24389 | Harness Power Cord |
|
- | |||||
| 972 | WR55X24143 | Inverter Asm Comp Mount |
|
- | |||||
| 991 | WR02X13622 | Bracket Condenser |
|
- | |||||
| 993 | WR02X13710 | Tube Trap Drain |
|
- | |||||
| 994 | WR01X11006 | Check Valve |
|
- | |||||
| 1003 | WR01X10618 | Scr 8-18 Tpt 1/4 |
|
- | |||||
| 1006 | WR01X20885 | Stud Mtg Compressor |
|
- | |||||
| 1007 | WR01X23749 | Scr 10-32 Ab Hxw 1/2 S |
|
- | |||||
| WG03L08182 | Ps Ff Rh Door Stainless |
|
$ 478.50 | ||||||
| WG03A00866 | Front/rear Wheel & Axle |
|
$ 29.26 | ||||||
| WG03A01658 | Roller Asm |
|
$ 15.88 | ||||||
| WR01F04233 | Inverter Asm Comp Mount |
|
$ 166.03 | ||||||
| WG03A02404 | Ps Bis Fz Basket & Glide Kit |
|
$ 216.18 | ||||||
| WG03L09792 | Joint, Refrig., Gris Fonce (Replaces: WG03L05344) |
|
$ 145.45 | ||||||
| WG03A00274 | Screw Leveling Asm |
|
$ 34.36 |
