SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment

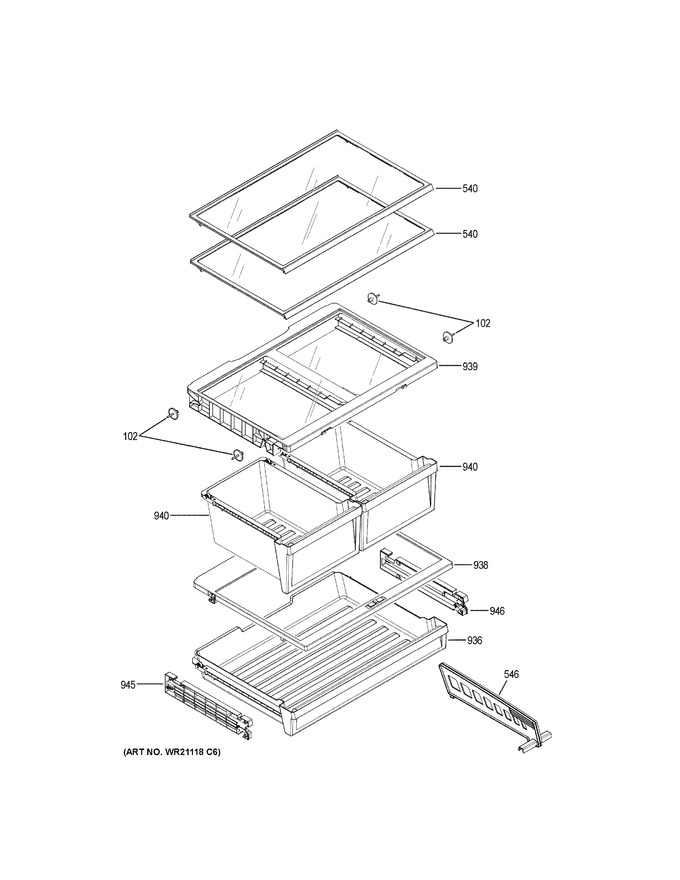

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
102	WR01A00975		Support Veg Pan Asm   (Replaces: WR02X13504)			Immediately	$ 4.28
540	WR72X25193		Shelf Full Asm		Appelez-nous	-
546	WR02X24969		Divider Pantry		Appelez-nous	-
936	WR71X25324		Pantry Asm		Appelez-nous	-
938	WR71X25325		Cover Pantry Asm		Appelez-nous	-
939	WR32X25326		Cover Veg Pan Asm		Appelez-nous	-
940	WR71X25327		Veg Pan Asm		Appelez-nous	-
945	WR72X25329		Slide Pantry Lh Asm		Appelez-nous	-
946	WR72X25330		Slide Pantry Rh Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
