SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment

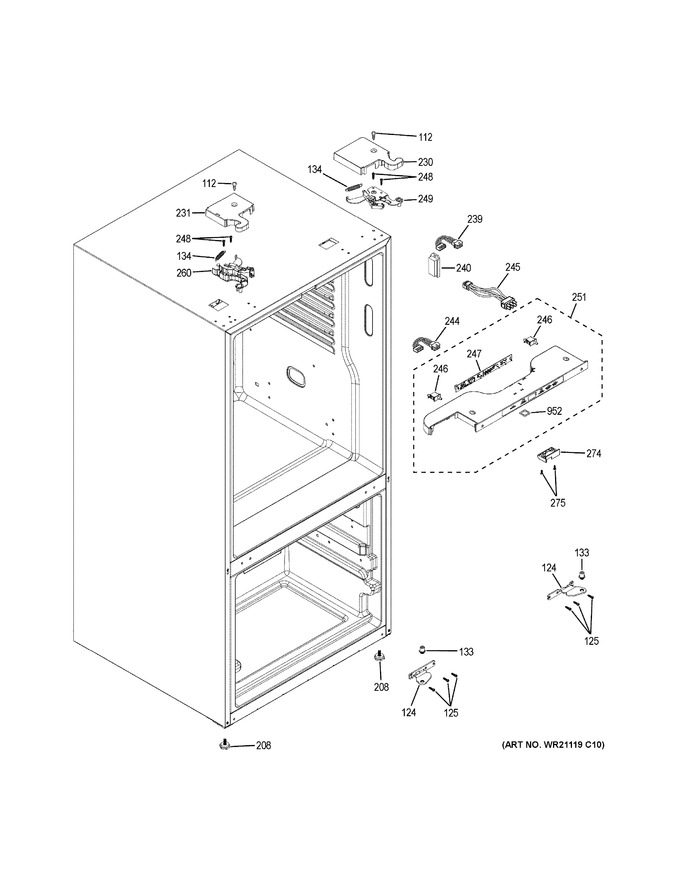

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01F03225		Screw   (Replaces: WR01X10379)				$ 3.57
124	WR13X24864		Hinge Center		Appelez-nous	-
125	WR01A00660		Scr 12-24 Tt Hxt20 .90 S   (Replaces: WR01X10683)				$ 4.20
133	WR02X24905		Steel Pin Hinge		Appelez-nous	-
134	WR02X25443		Spring Clusre		Appelez-nous	-
208	WR01X10850		Screw Leveling		Appelez-nous	-
230	WR13X24930		Cover Hinge Top Rh Dg		Appelez-nous	-
231	WR13X24931		Cover Hinge Top Lh Dg		Appelez-nous	-
239	WR23X10736		Harness Adapter Hum Sen		Appelez-nous	-
240	WR01F01731		Sensor Humidity   (Replaces: WR02X12711)			Immediately	$ 83.85
244	WR55X24897		Harness Interface		Appelez-nous	-
245	WR55X24933		Harness Switch		Appelez-nous	-
246	WR23X10750		Switch Light Ff		Appelez-nous	-
247	WR55X24895		Temp Board (hmi)		Appelez-nous	-
248	WR01X10792		Scr 12-24 Tt Hx 7/8 S		Appelez-nous	-
249	WR13X24928		Hinge Top Asm Rh Gb		Appelez-nous	-
251	WR55X25154		Interface Top Asm Dg		Appelez-nous	-
260	WR13X24929		Hinge Top Asm Lh Gb		Appelez-nous	-
274	WR02X24944		Striker Top Mullion		Appelez-nous	-
275	WR01X10482		Scr 8-18a Fl Hd 5/8 Ss		Appelez-nous	-
952	WR02X25397		Spacer Hmi		Appelez-nous	-
