SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts


8 - Machine Compartment

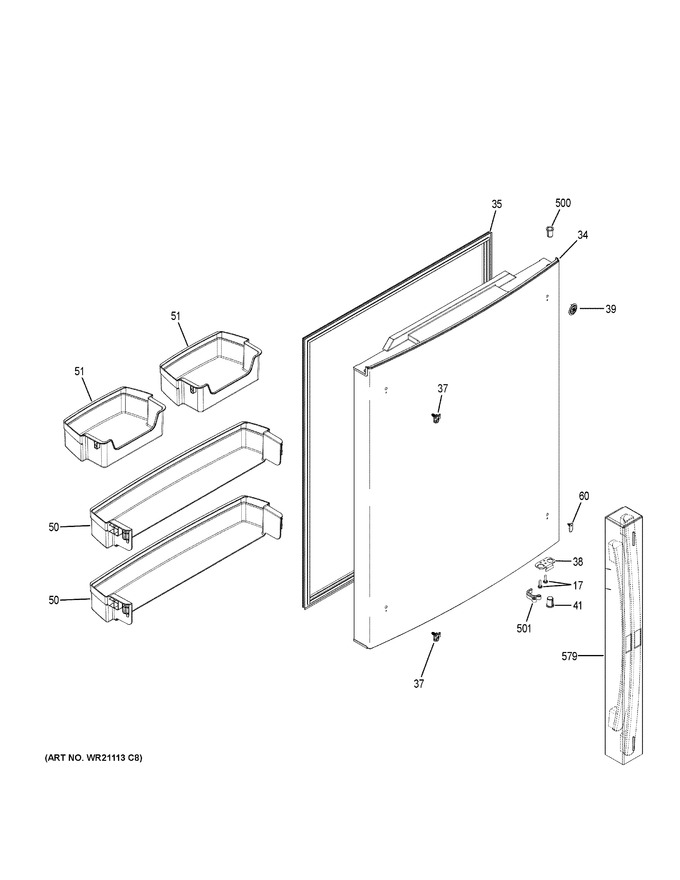

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	WR01X10582		Scr 10-16		Appelez-nous	-
34	WR78X25711		Door Foam Ff Asm Bb		Appelez-nous	-
35	WR14X25408		Gasket Door Ff Dg		Appelez-nous	-
37	WR01A02427		Fastener Handle Asm   (Replaces: WR01X25070)			Immediately	$ 7.15
38	WR02X24874		Stop Door		Appelez-nous	-
39	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 12.86
41	WR02X24875		Hinge Bushing Bb		Appelez-nous	-
50	WR71X25410		Shelf Door Full		Appelez-nous	-
51	WR71X24867		Shelf Door Module		Appelez-nous	-
60	WR02X25704		Plug Button Ww		Appelez-nous	-
500	WR02X24876		Hinge Bushing Bb		Appelez-nous	-
501	WR02X24877		Force Closure		Appelez-nous	-
579	WR12X25712		Pk Handle Kit Asm Bb		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
