SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts

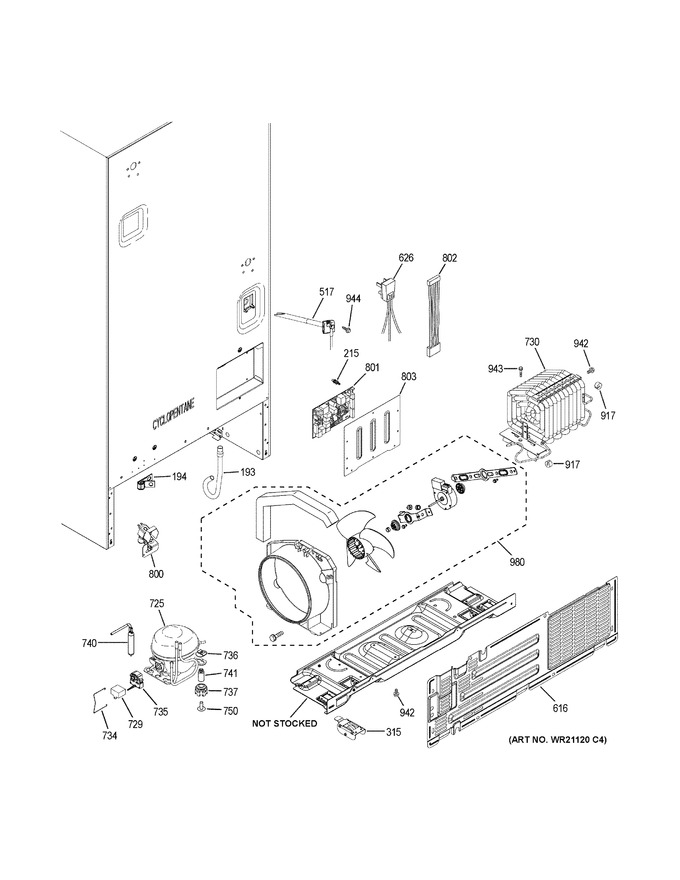

8 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
193	WR01F01884		Tube Drain   (Replaces: WR02X11426)			Immediately	$ 32.88
194	WR01X10684		Clamp Cable		Appelez-nous	-
215	WR02X10663		Stand Off		Appelez-nous	-
315	WR02X24943		Mobility Back Asm		Appelez-nous	-
517	WR29X24766		Grommet And Tube Im Asm		Appelez-nous	-
616	WR82X22566		Cover Access Asm		Appelez-nous	-
626	WR23X108		Power Cord		Appelez-nous	-
725	WG03F00141		Compressor Kit Egys60   (Replaces: WR87X10224)			Immediately	$ 717.37
729	WR62X20693		Capacitor		Appelez-nous	-
730	WR84X25328		Condenser Asm		Appelez-nous	-
734	WR02X22564		Clip Retainer Combo		Appelez-nous	-
735	WR08X21100		Tsd Combo		Appelez-nous	-
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
740	WG03A03157		P/s Dryer Kit R134a   (Replaces: WR86X96)			Immediately	$ 138.06
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
800	WR57X26305		Valve & Guard Asm		Appelez-nous	-
801	WR55X25391		Board Asm Main Control		Appelez-nous	-
802	WR55X25394		Harness Board Indiv		Appelez-nous	-
803	WR02X25127		Cover Main Board Asm		Appelez-nous	-
917	WR02X13573		Sound Damper		Appelez-nous	-
942	WR01X10252		Screw 10-32 Tt Hxw 5/16 S		Appelez-nous	-
943	WR01X25308		Scr 10-16 B Hxw 1/4 S		Appelez-nous	-
944	WR01X10035		Screw 8-18 Ab Ihw 5/8 S		Appelez-nous	-
980	WR60X25869		Cond Fan & Housing Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
