1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Case Parts


8 - Machine Compartment

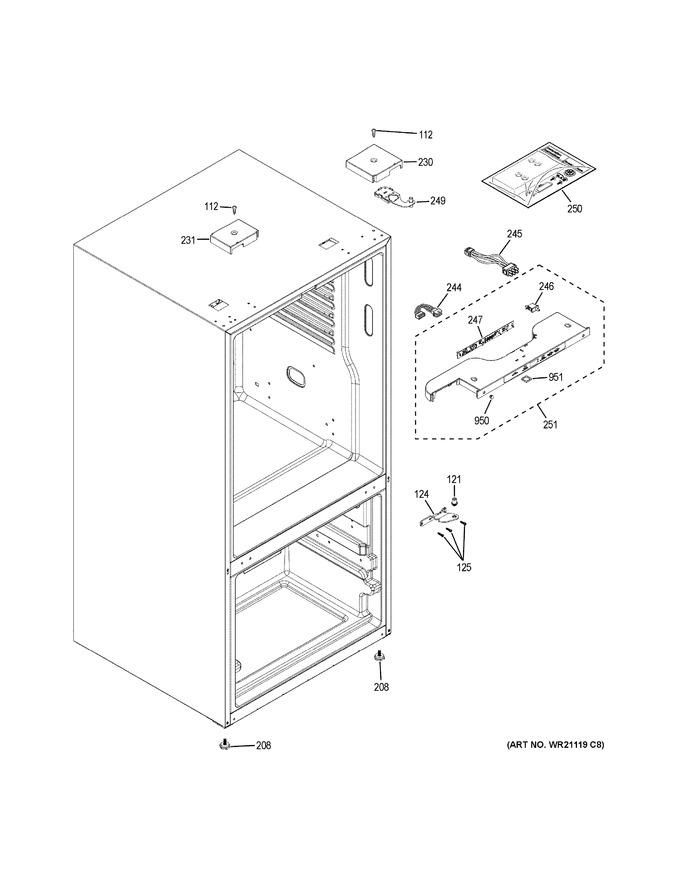

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01F03225		Screw   (Replaces: WR01X10379)				$ 3.57
121	WR02X24905		Steel Pin Hinge		Appelez-nous	-
124	WR13X24864		Hinge Center		Appelez-nous	-
125	WR01A00660		Scr 12-24 Tt Hxt20 .90 S   (Replaces: WR01X10683)				$ 4.20
208	WR01X10850		Screw Leveling		Appelez-nous	-
230	WR02X24848		Cover Hinge Top Rh Dg		Appelez-nous	-
231	WR13X24847		Cover Hinge Top Dg		Appelez-nous	-
244	WR55X24897		Harness Interface		Appelez-nous	-
245	WR23X24896		Harness Switch		Appelez-nous	-
246	WR23X10750		Switch Light Ff		Appelez-nous	-
247	WR55X24895		Temp Board (hmi)		Appelez-nous	-
249	WR13X24907		Hinge Top & Pin Asm		Appelez-nous	-
250	WR49X26394		Kit Hinge Changeable Ss		Appelez-nous	-
251	WR55X25395		Interface Top Asm Dg		Appelez-nous	-
950	WR02X25396		Plug Button Dg		Appelez-nous	-
951	WR02X25397		Spacer Hmi		Appelez-nous	-
