SELECT A DIAGRAM

1 - Gas & Burner Parts


2 - Control Panel & Cooktop


3 - Body Parts

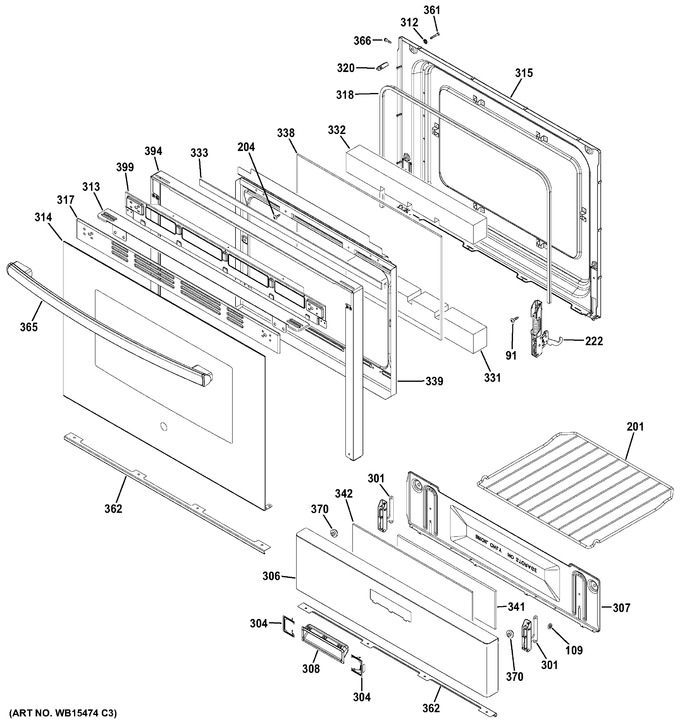

4 - Door & Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
91	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.97
109	WB1X5743		Speednut		Appelez-nous	-
201	WB48X26677		Oven Rack		Appelez-nous	-
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 15.88
222	WB10X21809		Hinge Door		Appelez-nous	-
301	WB10X26678		Hinge Door		Appelez-nous	-
304	WB01X26891		Clip Broil Handle		Appelez-nous	-
306	WB56X27780		Panel Drawer		Appelez-nous	-
307	WB56X26676		Liner Drawer		Appelez-nous	-
308	WB15X26672		Handle Broil		Appelez-nous	-
312	WB1X119		Contoured Washer		Appelez-nous	-
313	WB07X26414		Cover Vent Trim		Appelez-nous	-
314	WB56X26696		Glass Oven Door Asm		Appelez-nous	-
315	WB56X20206		Liner Asm Weld Door		Appelez-nous	-
317	WB07X26937		Vent Trim		Appelez-nous	-
318	WB56X21215		Gasket Door Asm		Appelez-nous	-
320	WB02K10156		Spacer		Appelez-nous	-
331	WB35K10148		Insulation Top Door		Appelez-nous	-
332	WB35K10146		Side Insulation Door		Appelez-nous	-
333	WB35K10147		Bottom Insulation Door		Appelez-nous	-
338	WB56X23809		Crystal Window		Appelez-nous	-
339	WB56K10033		Guard Insulation		Appelez-nous	-
341	WB35X26709		Range Side Insulation		Appelez-nous	-
342	WB35X26892		Panel Side Foil		Appelez-nous	-
361	WB1K35		Screw		Appelez-nous	-
362	WS01L11850		Barrier Door   (Replaces: WB07X20288)			Immediately	$ 6.94
365	WB15X26624		Handle And End Cap Asm		Appelez-nous	-
366	WB01X23700		Scr 10-16 Pl Pnt 2.5 S		Appelez-nous	-
370	WB02K10330		Bumper Door		Appelez-nous	-
394	WB07X20354		Trim Door		Appelez-nous	-
399	WS01L11377		Panel Backer   (Replaces: WB56X20809)				$ 51.71

    View Diagram in Separate Window       Print Part List
