SELECT A DIAGRAM
New Model Search:

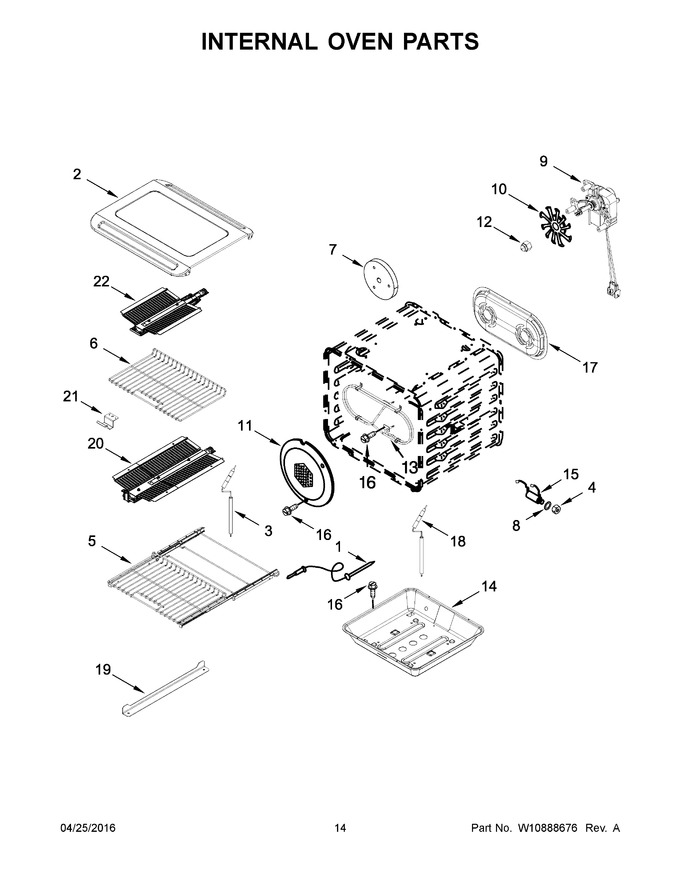

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 2 | WPW10272546 | Bottom, Oven (Replaces: W10272546) |
|
Immediately | $ 222.79 | ||||
| 3 | W11446096 | Electrode, Broil (Replaces: W10332287) |
|
Immediately | $ 84.02 | ||||
| 4 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 5 | W10570868 | Rack, Oven (sliding) |
|
$ 169.33 | |||||
| 6 | W10822069 | Rack, Oven (Replaces: W10570880) |
|
Immediately | $ 138.59 | ||||
| 7 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 27.10 | ||||
| 8 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 6.41 | |||||
| 9 | W10794440 | Motor, Convection (Replaces: W10631506) |
|
Immediately | $ 332.30 | ||||
| 10 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 11 | W10261523 | Plate, Fan |
|
$ 77.85 | |||||
| 12 | W10794042 | Nut, Acorn (Replaces: W10631504) |
|
$ 13.14 | |||||
| 13 | W11033310 | Element, Convection (Replaces: W10145949) |
|
$ 162.29 | |||||
| 14 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 214.15 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 17 | W10246060 | Baffle, Convection |
|
$ 186.04 | |||||
| 18 | W11448312 | Electrode, Bake (Replaces: W10332290) |
|
Immediately | $ 72.90 | ||||
| 19 | W10317437 | Bracket, Broil Standoff |
|
- | |||||
| 20 | W11661180 | Burner, Broil (Replaces: W10311335) |
|
$ 175.93 | |||||
| 21 | W10308040 | Bracket, Bake Burner |
|
- | |||||
| 22 | W11643161 | Burner, Bake (Replaces: W10311409) |
|
Immediately | $ 185.14 |
