SELECT A DIAGRAM

01 - Cover Sheet

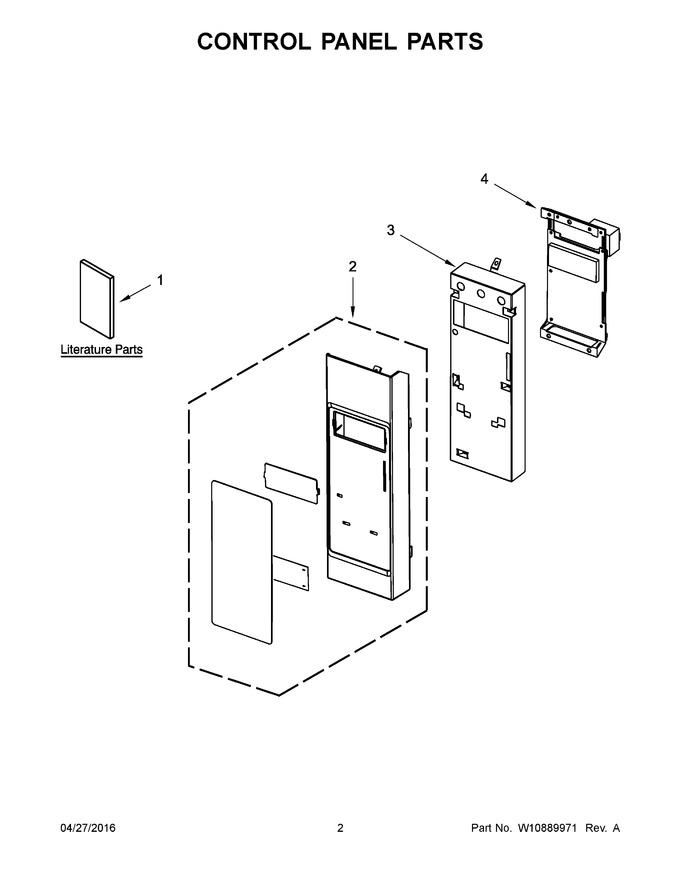

02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10724867		Installation Instructions		Appelez-nous	-
2	W10468660		Control Panel Assembly (includes Lens And Membrane Switch) (white)				$ 345.47
3	W10723871		Backer, Control				$ 78.81
4	W10892371		Microcomputer   (Replaces: W10831037)			Immediately	$ 350.45
1A	W10835575		Use And Care Guide		Appelez-nous	-
1B	W10835580		Cook Guide Label		Appelez-nous	-
1C	W10742541		Tech Sheet		Appelez-nous	-
2A	W10468661		Control Panel Assembly (includes Lens And Membrane Switch) (black)				$ 332.73
2B	W10443378		Control Panel Assembly (includes Lens And Membrane Switch) (stainless)				$ 326.88

    View Diagram in Separate Window       Print Part List
