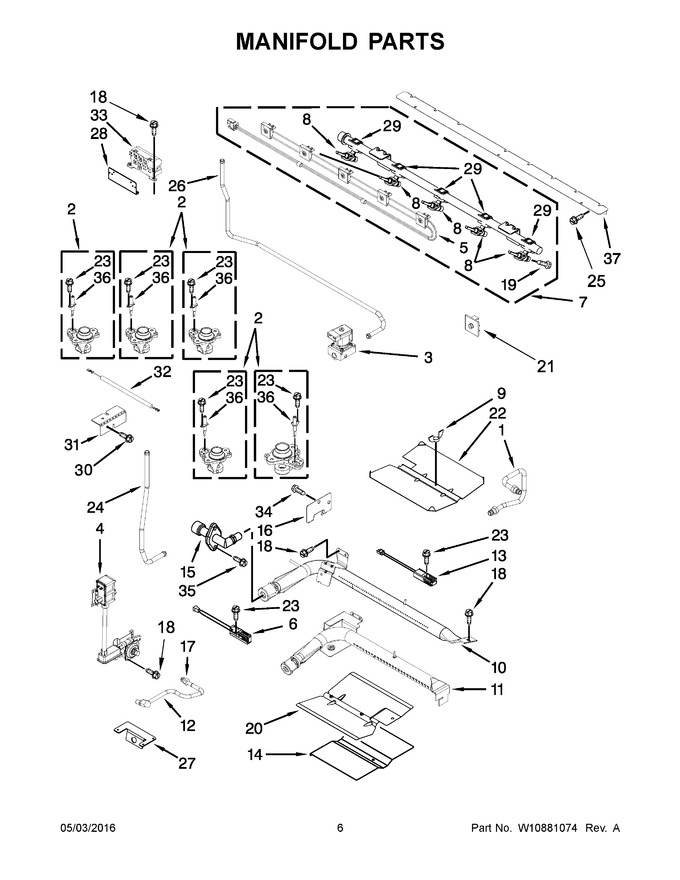

04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319002		Tubing, Broil				$ 190.79
2	W11230935		Holder, Orifice (17k) (left Front)   (Replaces: W10643268)				$ 111.86
3	W10911971		Valve, Shut Off   (Replaces: W10368614)				$ 375.49
4	WPW10546238		Valve/regulator   (Replaces: W10546238)			Immediately	$ 333.86
5	W11772398		Harness, Switch   (Replaces: W10664240)			Immediately	$ 86.33
6	WPW10324738		Ignitor, Gas   (Replaces: W10324738)			Immediately	$ 329.05
7	W11684563		Assembly, Manifold   (Replaces: W10806878)				$ 318.66
8	W11740802		Valve (17k) (left Front & Right Front)   (Replaces: W10718180)			Immediately	$ 95.22
9	7103P030-60		Nut, Wing				$ 7.43
10	W11245221		Burner, Broiler   (Replaces: W10315768)				$ 222.29
11	W11174122		Burner, Bake   (Replaces: W10407912)				$ 213.50
12	W10342662		Orifice, Bake (upper)				$ 210.08
13	W11596211		Ignitor, Bake   (Replaces: 7432P143-60)			Immediately	$ 93.36
14	W10298865		Shield, Bake		Appelez-nous	-
15	W10292293		Fitting, Broiler				$ 104.17
16	4005F421-45		Cover, Ignitor Wire		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 9.39
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
19	W10295997		Screw, Valve				$ 7.32
20	W10272528		Baffle, Bake				$ 294.68
21	W10631502		Grommet, Valve Stem		Appelez-nous	-
22	3601F358-45		Baffle, Broil Burner				$ 254.66
23	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
24	W10524331		Tubing (supply Regulator To Shutoff)				$ 48.73
25	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.55
26	W10642388		Tubing (supply Shutoff To Manifold)		Appelez-nous	-
27	W11756017		Bracket, Orifice   (Replaces: W10272520)		Appelez-nous	-
28	W10319059		Bracket, Spark Module		Appelez-nous	-
29	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
30	W10217535		Screw				$ 21.92
31	W10324366		Holder, Electrode Extension		Appelez-nous	-
32	W10636384		Extension, Electrode				$ 140.05
33	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 355.95
34	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
35	WP3387230		Screw   (Replaces: 7101P502-60)			Immediately	$ 8.54
36	W11208293		Electrode, Spark   (Replaces: W10565365)				$ 66.18
37	WPW10276466		Bracket, Manifold (bottom)   (Replaces: W10276466)				$ 108.19
12A	W10342661		Orifice, Bake (lower)				$ 199.64
2A	W10643269		Holder, Orifice (5k) (left Rear)				$ 117.98
2B	W11685612		Holder, Orifice (10k) (right Front)   (Replaces: W10643270)			Immediately	$ 85.69
2C	W10643271		Holder, Orifice (5k) (right Rear)				$ 124.13
2D	W10643272		Holder, Orifice (7k) (center)				$ 124.15
36A	W10637673		Electrode, Fish				$ 67.90
8A	W10718182		Valve (5k) (left Rear & Right Rear)				$ 282.01
8B	W10718181		Valve (10k)				$ 282.01
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11674161		Kit, Lp Conversion   (Replaces: W10591270)				$ 115.66
NI	W10324646		Insulation, Orifice				$ 91.18
