01 - Cover Sheet

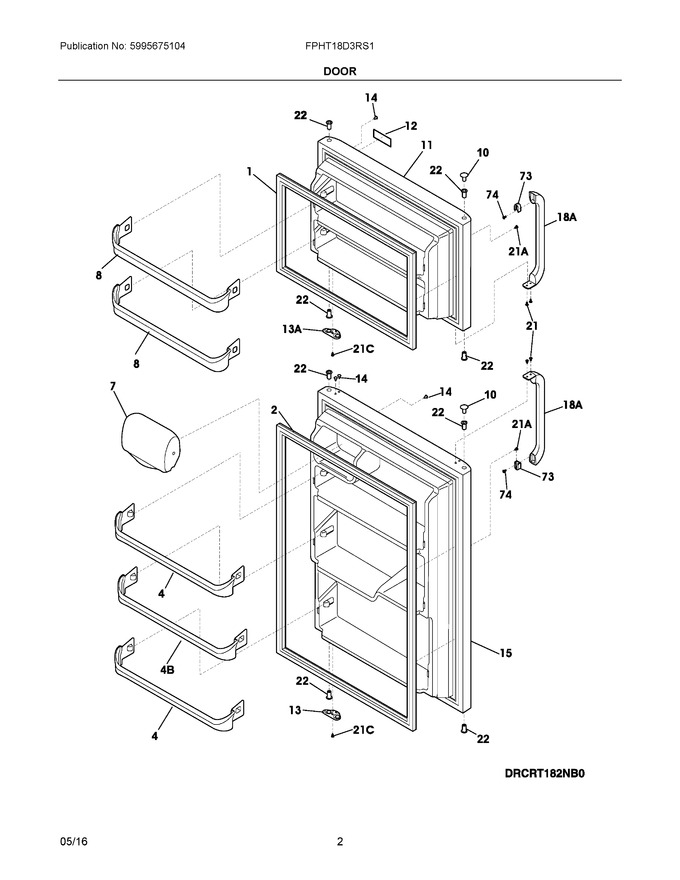

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193218 | Gasket-frzr Door, Gray, Magnetic |
|
$ 209.00 | |||||
| 2 | 242193219 | Gasket-refr Door, Gray, Magnetic |
|
Immediately | $ 209.00 | ||||
| 4 | 240534901 | Rack-door |
|
Immediately | $ 52.25 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 40.45 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 55.13 | ||||
| 10 | 240381307 | Plug-button, Gray, Hinge Brg Hole, (2) |
|
Immediately | $ 18.54 | ||||
| 11 | 240410206 | Door-frzr, Stainless, Complete Assy |
|
$ 701.19 | |||||
| 12 | 242015101 | Nameplate |
|
$ 5.06 | |||||
| 13 | 240312424 | Door Stop, Gray, Ref (Replaces: 240312420) |
|
$ 16.01 | |||||
| 14 | 240494001 | Plug-button, White, Cab Liner Holes |
|
Immediately | $ 20.22 | ||||
| 15 | 242178112 | Door-refr, Stainless, Complete Assy (Replaces: 240410309) |
|
$ 663.97 | |||||
| 18 | 241977601 | Handle-door, Refr-lh/frzr-rh |
|
- | |||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge, Black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 21.74 | ||||
| 13A | 240312419 | Door Stop, Gray, Frzr |
|
$ 18.11 | |||||
| 18A | 241977602 | Handle-door, Refr-rh/frzr-lh |
|
- | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 4B | 240534701 | Rack-door, 4b |
|
Immediately | $ 32.00 | ||||
| NIA | 241701901 | Screw Driver |
|
- | |||||
| NIA | 218515401 | Clip-grille |
|
$ 19.69 | |||||
| NIA | 241601001 | Wrench, Allen |
|
- |
