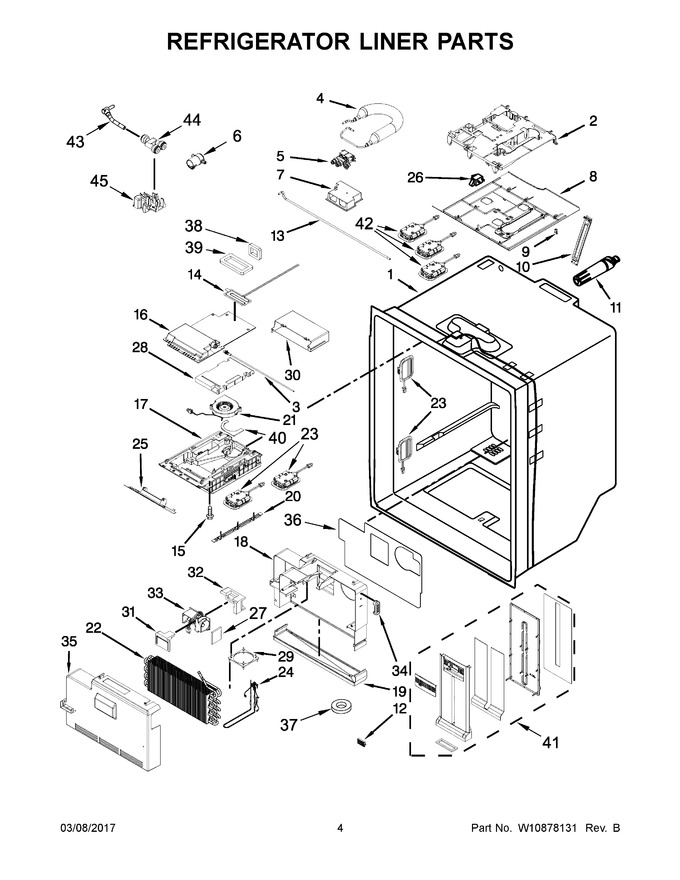

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10842950 | Housing, Water System (Replaces: W10826118) |
|
$ 50.83 | |||||
| 3 | W11686799 | Tube, Fill (Replaces: W10736144) |
|
Immediately | $ 118.24 | ||||
| 4 | W11168758 | Reservoir, Water (also Order Wire Tie Part 8567668) (Replaces: W10711460) |
|
Immediately | $ 115.54 | ||||
| 5 | WPW10341329 | Valve, Dual Water (Replaces: W10341329) |
|
Immediately | $ 115.24 | ||||
| 6 | W11194438 | Housing, Water Filter (Replaces: W10238156) |
|
Immediately | $ 220.12 | ||||
| 7 | W10811115 | Enclosure, Water Valve |
|
$ 107.85 | |||||
| 8 | W11190820 | Cover, Waterbox (Replaces: W10669663) |
|
$ 115.73 | |||||
| 9 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 120.84 | |||||
| 10 | WPW10277949 | Door, Filter Access (Replaces: W10277949) |
|
$ 100.91 | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W11686800 | Waterline, Valve To Hinge (Replaces: W10674102) |
|
$ 88.45 | |||||
| 14 | W11087201 | Heater, Fill Tube (Replaces: W10706850) |
|
Immediately | $ 83.21 | ||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | WPW10598013 | Cover, Icebox (Replaces: W10598013) |
|
Immediately | $ 157.86 | ||||
| 17 | W10811686 | Assembly, Icebox (foamed) |
|
$ 219.14 | |||||
| 18 | W11435997 | Enclosure, Evaporator (Replaces: W10503486) |
|
$ 229.19 | |||||
| 19 | W11457241 | Pan, Drain (Replaces: W10525237) |
|
Immediately | $ 78.60 | ||||
| 20 | W10505516 | Trim, Icebox |
|
$ 35.20 | |||||
| 21 | W10846539 | Fan, Icebox (Replaces: W10833801) |
|
Immediately | $ 181.73 | ||||
| 22 | W11492867 | Assembly, Evaporator (Replaces: W10630535) |
|
Immediately | $ 266.93 | ||||
| 23 | W11683243 | Assembly, Led Light Module (Replaces: W10843353) |
|
Immediately | $ 269.91 | ||||
| 24 | W11087438 | Assembly, Refrigerator Evaporator Wire (includes Evaporator Fan Motor And Thermistor) (Replaces: W10799016) |
|
Immediately | $ 134.81 | ||||
| 25 | W11637688 | Assembly, Fascia (includes Heater) (Replaces: W10553630) |
|
Immediately | $ 113.56 | ||||
| 26 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 27 | W10470981 | Gasket, Damper |
|
$ 26.47 | |||||
| 28 | WPW10280983 | Insulation (Replaces: W10280983) |
|
Immediately | $ 94.25 | ||||
| 29 | WPW10389152 | Support, Fan (Replaces: W10389152) |
|
Immediately | $ 22.39 | ||||
| 30 | WPW10635022 | Adapter, Icebox (Replaces: W10635022) |
|
Immediately | $ 107.57 | ||||
| 31 | W11225849 | Retainer, Damper (Replaces: W10503491) |
|
Immediately | $ 23.74 | ||||
| 32 | W11230117 | Support, Damper (Replaces: W10503492) |
|
$ 154.84 | |||||
| 33 | WPW10248595 | Damper, Electronic Control (Replaces: W10248595) |
|
Immediately | $ 132.64 | ||||
| 34 | W11238397 | Cover, Thermistor (Replaces: W10438957) |
|
Immediately | $ 23.33 | ||||
| 35 | W11188493 | Cover, Evaporator (Replaces: W10503500) |
|
$ 256.41 | |||||
| 36 | W11435996 | Gasket, Evaporator Enclosure (Replaces: W10465948) |
|
$ 29.45 | |||||
| 37 | W11568592 | Gasket, Drain Tube (Replaces: W10510863) |
|
$ 12.83 | |||||
| 38 | WPW10320706 | Gasket, Rear Return (Replaces: W10320706) |
|
Immediately | $ 27.86 | ||||
| 39 | WPW10280988 | Gasket, Rear Supply (Replaces: W10280988) |
|
Immediately | $ 8.17 | ||||
| 40 | WPW10392172 | Gasket, Fan (Replaces: W10392172) |
|
Immediately | $ 27.77 | ||||
| 41 | W10749497 | Assembly, Air Tower |
|
$ 145.56 | |||||
| 42 | W11683243 | Harness, Led Wire (includes Led Lights) (Replaces: W10843846) |
|
Immediately | $ 269.91 | ||||
| 43 | W10723352 | Waterline |
|
$ 120.75 | |||||
| 44 | W11209438 | Connector, Water Tube (Replaces: W10722983) |
|
$ 35.72 | |||||
| 45 | W10713934 | Bracket, Connector |
|
$ 72.16 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10859326 | Harness, Dual Valve (Replaces: W10570599) |
|
$ 121.19 |
