SELECT A DIAGRAM

01 - Cover Sheet


02 - Color Variation Parts


03 - Case, Gearing And Planetary Unit Parts

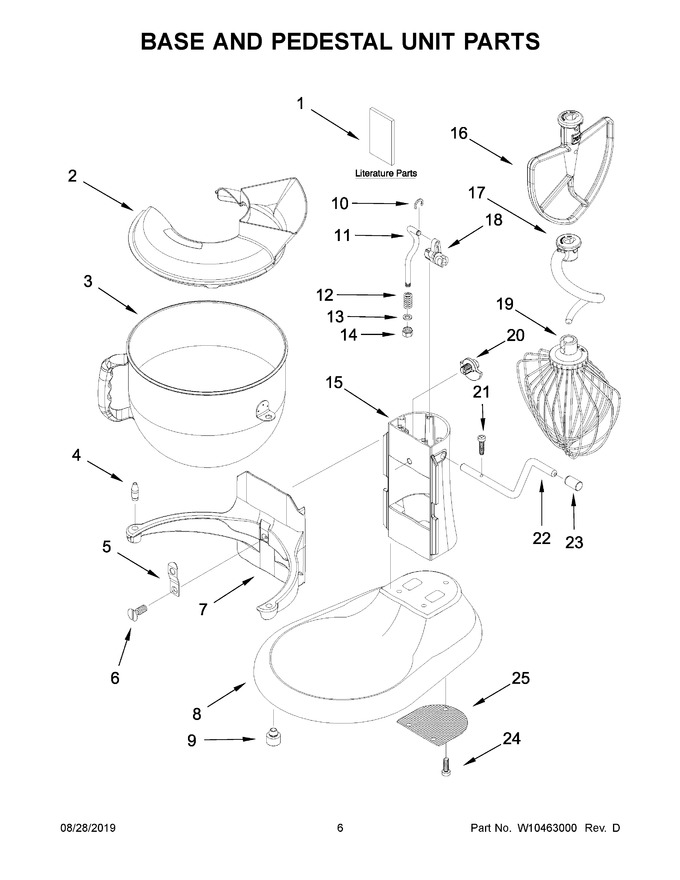

04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11266857		Use & Care Guide (china)		Appelez-nous	-
2	WPW10617049		Shield, Pouring (wide)   (Replaces: W10617049)				$ 63.02
3	W11769890		Bowl, 7 Qt.   (Replaces: W10354778)				$ 90.38
4	WP240185		Pin, Retaining Bowl   (Replaces: 240185)				$ 4.50
5	WPW10504114		Clip, Bowl Retainer   (Replaces: W10504114)			Immediately	$ 5.14
6	W10861883		Screw   (Replaces: 3400018)			Immediately	$ 4.94
7	N/P		Bowl Support (refer To Color Variation Parts Page)		Appelez-nous	-
8	N/P		Base And Foot Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
9	WP9708649		Foot   (Replaces: 9708649)			Immediately	$ 4.79
10	WP9703307		Ring, Retaining   (Replaces: 9703307)			Immediately	$ 4.42
11	W11775238		Rod, Bowl Lift   (Replaces: W10598835)				$ 5.73
12	4159622		Spring, Lift Rod   (Replaces: 9237)			Immediately	$ 4.70
13	W11708395		Washer   (Replaces: 9703439)				$ 4.47
14	8533907		Nut				$ 24.83
15	N/P		Column Assembly (refer To Color Variation Parts Page)		Appelez-nous	-
16	W11458649		Beater, Flat (stainless)   (Replaces: W10720793)				$ 86.22
17	W11397072		Hook, Dough (stainless)   (Replaces: W10720794)				$ 75.82
18	WP9706885		Arm, Bowl Lift   (Replaces: 9706885)			Immediately	$ 5.17
19	WPW10600940		Whip, Wire   (Replaces: W10600940)				$ 124.95
20	W11721849		Cam, Adjusting   (Replaces: 9703426)				$ 6.08
21	WP3400814		Screw   (Replaces: 3400863)				$ 4.62
22	W11778321		Handle, Bowl Lift   (Replaces: W10598836)				$ 24.01
23	W11501449		Cap, Handle   (Replaces: W10769141)				$ 24.12
24	W10913677		Screw   (Replaces: 3400200)				$ 4.64
25	9706814		Screen, Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
