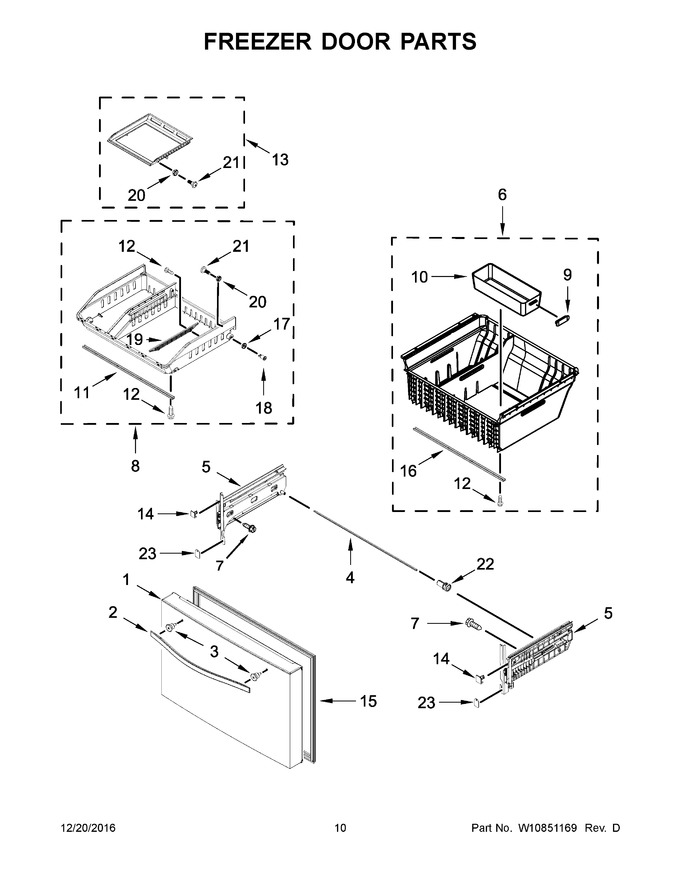

06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10799350		Door, Freezer (includes Door Gasket) (white)		Appelez-nous	-
2	W10889845		Handle, Door (stainless)   (Replaces: W10874248)				$ 170.59
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
4	W11173556		Shaft, Rack   (Replaces: W10851956)				$ 29.14
5	W11129907		Assembly, Bracket (also Order Door Shim) (left Hand)   (Replaces: W10682493)			Immediately	$ 320.76
6	W10878455		Assembly, Bottom Pan		Appelez-nous	-
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.90
8	W10882221		Assembly, Top Pan				$ 71.63
9	W10688610		Clip, Divider		Appelez-nous	-
10	W10878452		Divider, Bottom Pan				$ 90.52
11	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 139.59
12	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 7.50
13	W10884803		Assembly, Upper Half Pan   (Replaces: W10886305)				$ 155.60
14	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 75.29
15	W10884295		Gasket, Door (white)		Appelez-nous	-
16	W10697812		Bar, Support		Appelez-nous	-
17	W11578839		Roller, Pan   (Replaces: W10248555)				$ 13.46
18	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 32.89
19	W10794819		Rail, Guard		Appelez-nous	-
20	W10742424		Roller				$ 14.45
21	W10272525		Screw   (Replaces: W10875122)				$ 9.07
22	WPW10277361		Collar, Gear   (Replaces: W10277361)				$ 10.88
23	W11225846		Shim, Door   (Replaces: W10882906)				$ 13.73
14A	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 78.04
15A	W10884296		Gasket, Door (black)		Appelez-nous	-
15B	W10884297		Gasket, Door (grey)				$ 298.23
1A	W10799351		Door, Freezer (includes Door Gasket) (black)		Appelez-nous	-
1B	W10799352		Door, Freezer (includes Door Gasket) (stainless)		Appelez-nous	-
5A	W11129400		Assembly, Bracket (also Order Door Shim) (right Hand)   (Replaces: W10682494)				$ 155.01
