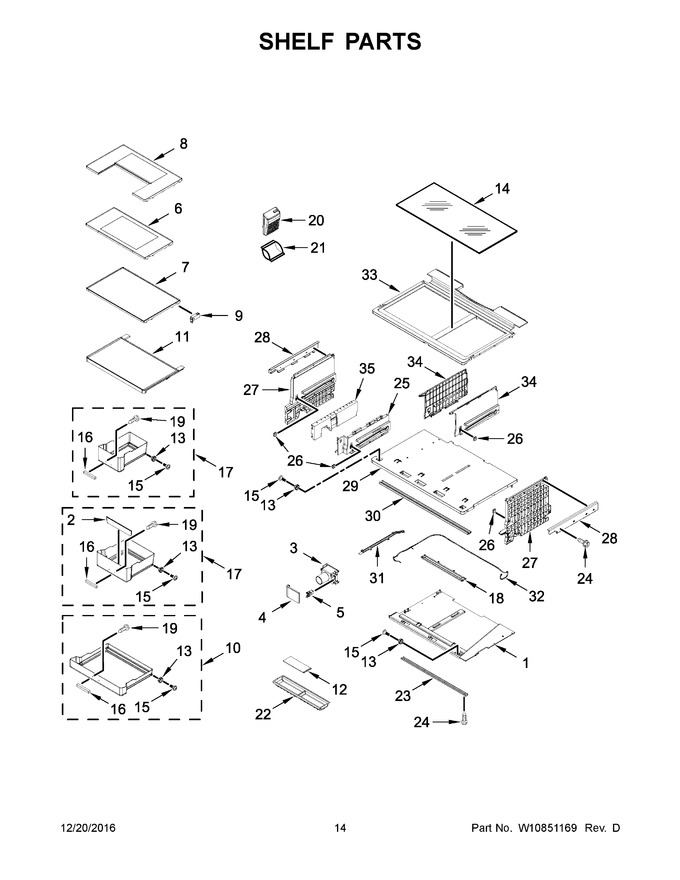

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10715805 | Base, Pantry |
|
- | |||||
| 2 | W10720472 | Divider, Crisper |
|
- | |||||
| 3 | W10717549 | Fascia, Water Filter |
|
- | |||||
| 4 | W11220368 | Door, Filter (Replaces: W10717299) |
|
- | |||||
| 5 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 108.76 | |||||
| 6 | W11492410 | Assembly, Three Quarter Shelf (Replaces: W10872222) |
|
$ 205.07 | |||||
| 7 | W10872219 | Assembly, Full Shelf |
|
- | |||||
| 8 | W11159612 | Shelf, Tuck (Replaces: W10872717) |
|
$ 302.94 | |||||
| 9 | W10753430 | Assembly, Block (front Left/back Right) |
|
$ 23.89 | |||||
| 10 | W10758542 | Pan, Pantry |
|
- | |||||
| 11 | W10891594 | Assembly, Platter Shelf (Replaces: W10872223) |
|
$ 291.02 | |||||
| 12 | W10757762 | Assembly, Mullion Bin Lid (top) |
|
$ 105.08 | |||||
| 13 | W10742424 | Roller |
|
$ 14.45 | |||||
| 14 | W10755188 | Glass, Crisper |
|
- | |||||
| 15 | W10272525 | Screw (Replaces: W10875122) |
|
$ 9.07 | |||||
| 16 | W10717577 | Handle |
|
- | |||||
| 17 | W10758540 | Assembly, Crisper Pan (left Hand) |
|
- | |||||
| 18 | W11401419 | Assembly, Light (Replaces: W10758550) |
|
$ 171.71 | |||||
| 19 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 20 | W10647983 | Holder, Filter |
|
- | |||||
| 21 | W10346771 | Filter, Produce Preserver |
|
- | |||||
| 22 | N/P | Assembly, Mullion Bin (not Serviced) |
|
- | |||||
| 23 | W10758900 | Bar, Pantry Support |
|
$ 115.46 | |||||
| 24 | W10847999 | Screw |
|
$ 12.12 | |||||
| 25 | W10715817 | Support, Pantry Center |
|
- | |||||
| 26 | 12702901 | Pad, Glide |
|
- | |||||
| 27 | W10715370 | Support, Crisper Side (left Hand) |
|
- | |||||
| 28 | W10716744 | Rail, Platter Side (left Hand) |
|
- | |||||
| 29 | W10715387 | Cover, Pantry |
|
- | |||||
| 30 | W10758351 | Bar, Support |
|
- | |||||
| 31 | W10759545 | Cover, Wire Harness |
|
- | |||||
| 32 | W10724684 | Assembly, Pantry Wire (includes Thermistor) |
|
$ 122.51 | |||||
| 33 | W11083946 | Cover, Crisper Frame (Replaces: W10715408) |
|
$ 192.63 | |||||
| 34 | W10716166 | Support, Center Crisper (left Hand) |
|
- | |||||
| 35 | W10796037 | Insulation, Filter Housing |
|
- | |||||
| 12A | W10757776 | Assembly, Mullion Bin Lid (bottom) |
|
$ 81.16 | |||||
| 17A | W10758541 | Assembly, Crisper Pan (right Hand) |
|
- | |||||
| 27A | W10715317 | Support, Crisper Side (right Hand) |
|
- | |||||
| 28A | W10716776 | Rail, Platter Side (right Hand) |
|
- | |||||
| 34A | W10715841 | Support, Center Crisper (right Hand) |
|
- | |||||
| 9A | W10753431 | Assembly, Block (front Right/back Left) |
|
$ 23.95 |
