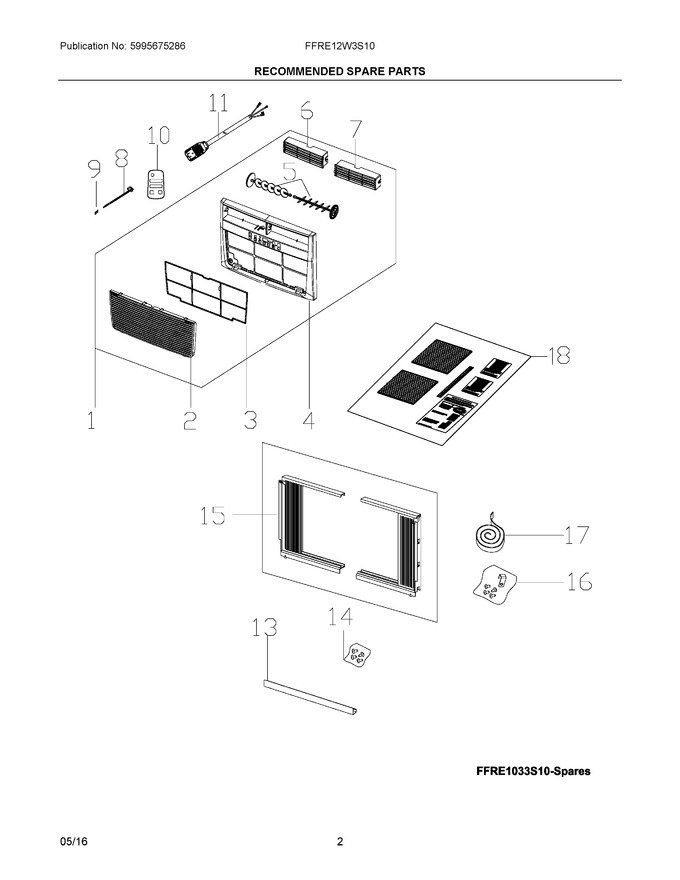

SELECT A DIAGRAM

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304496241		Front Assembly, Complete Panel		Appelez-nous	-
2	5304476860		Panel, Front Grille, Tilt-out		Appelez-nous	-
3	5304476861		Filter, Air, Plastic Frame		Appelez-nous	-
4	5304496242		Panel, Front Grille, Tilt-out		Appelez-nous	-
5	5304476863		Louver, Vertical		Appelez-nous	-
6	5304476864		Louver, Horizontal, Left		Appelez-nous	-
7	5304476865		Louver, Horizontal, Right		Appelez-nous	-
8	5304476178		Door, Vent Control, With Lever		Appelez-nous	-
9	5304520877		Sleeve, Vent Door Assy, Guide   (Replaces: 5304476179)		Appelez-nous	-
10	5304496243		Remote Control, Transmitter		Appelez-nous	-
11	5304536807		Power Cord, Electric, Lcdi   (Replaces: 5304500884)				$ 140.95
13	5304476199		Rail, Shutter Track, Top Angle		Appelez-nous	-
14	5304472191		Screw Kit, Top Rail Mount				$ 16.22
15	5304504883		Window Filler Kit, Slider Panel		Appelez-nous	-
16	5304491953		Hardware, Mounting, Screws/locks				$ 19.52
17	5304472211		Seal Kit, Foam, Sash Filler				$ 36.12
18	5304504884		Panel, Insulation, R1		Appelez-nous	-
