01 - Cover Sheet

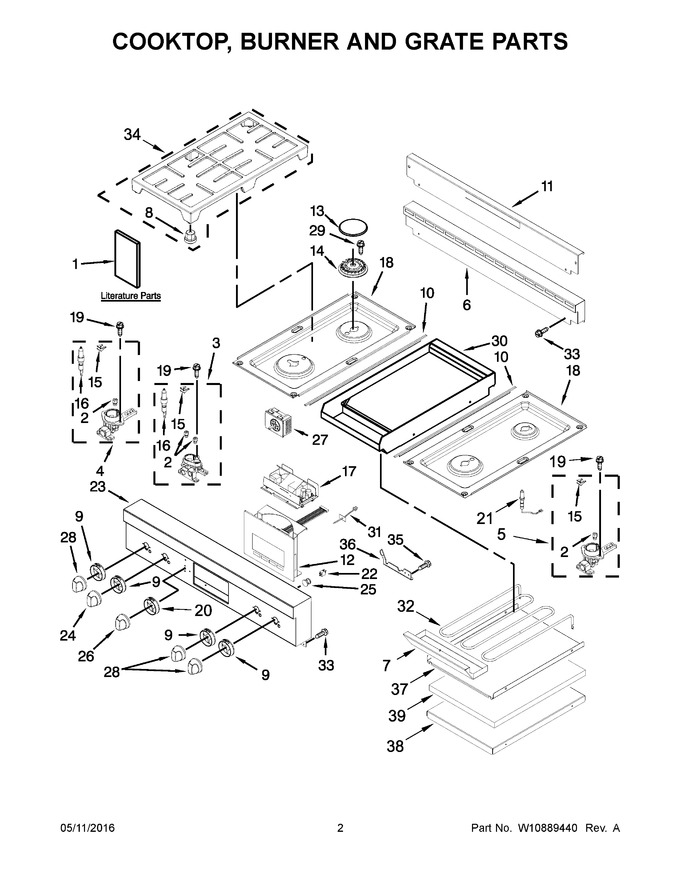

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2	W10340425		Orifice (high) (left Front)		Appelez-nous	-
3	W10813979		Assembly, Orifice Holder (left Front)		Appelez-nous	-
4	W10813992		Assembly, Orifice Holder (left Rear & Right Front)		Appelez-nous	-
5	W10813995		Assembly, Orifice Holder (right Rear)		Appelez-nous	-
6	W10323249		Trim, Island				$ 316.14
7	W10276497		Tray, Griddle Drip				$ 404.03
8	W10185266		Bumper, Grate   (Replaces: 8286695)			Immediately	$ 15.47
9	W10276494		Bezel, Front				$ 80.42
10	W10291193		Trim, L-strip		Appelez-nous	-
11	W10323250		Island, Trim Insert				$ 181.79
12	W10464535		Assembly, Keypad				$ 1,125.19
13	WPW10256034		Cap, Burner (black) (left Front)   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front)   (Replaces: W10495853)			Immediately	$ 89.01
15	W10256046		Spring, Electrode (left Front, Left Rear, Right Front)				$ 11.56
16	W10833887		Electrode, Burner (left Front, Left Rear, Right Front)   (Replaces: W10256047)			Immediately	$ 31.77
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 311.25
18	W10352969		Cooktop (black (left))				$ 335.75
19	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
20	W10145453		Bezel, Griddle				$ 80.42
21	W10146042		Electrode, Burner (right Rear)				$ 19.74
22	W10116114		Light, Indicator Housing			Immediately	$ 93.57
23	W11444937		Console   (Replaces: W10789954)				$ 748.31
24	W10145568		Knob, Dual (stainless) (left Front)				$ 52.92
25	W10294500		Lens, Indicator Light				$ 7.69
26	W10145566		Knob, Griddle (stainless)			Immediately	$ 51.66
27	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
28	W10145454		Knob, Single (stainless) (left Front, Left Rear, Right Front)				$ 46.94
29	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
30	W10625221		Module, Griddle				$ 1,457.32
31	W10319835		Sensor, Griddle				$ 239.28
32	W10193014		Element, Griddle				$ 323.46
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
34	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 218.28
35	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
36	W10130760		Bracket, Moving Console (left)				$ 75.94
37	W10145620		Tray, Element Griddle		Appelez-nous	-
38	W10246074		Tray, Griddle Insulation		Appelez-nous	-
39	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
13A	WPW10256032		Cap, Burner (black) (left Rear & Right Front)   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black) (right Rear)   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 149.87
15A	8286863		Spring, Electrode (right Rear)				$ 76.92
18A	W10352968		Cooktop (black (right))				$ 337.26
1A	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1B	W10837388		Guide, Use & Care		Appelez-nous	-
1C	W10821591		Instructions, Installation		Appelez-nous	-
1D	W10403308		Sheet, Tech (english)		Appelez-nous	-
1E	W10403309		Sheet, Tech (french)		Appelez-nous	-
2A	W10371246		Orifice (low) (left Front)		Appelez-nous	-
2B	W10371247		Orifice (11k) (left Rear & Right Front)		Appelez-nous	-
2C	W10282664		Orifice (3k) (right Rear)		Appelez-nous	-
36A	W10130759		Bracket, Moving Console (right)				$ 75.94
NI	4450800		Screw, Grounding				$ 13.47
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	N/P		Following Accessories Not Included		Appelez-nous	-
NI	W10344051		Harness, Communication				$ 133.32
NI	W10116168		Harness, Main			Immediately	$ 284.61
NI	W10116146		Harness, Griddle		Appelez-nous	-
NI	W10363280		Harness, Ignition				$ 89.67
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W10145988		Harness, Switch				$ 168.55
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10146036		Wire, Electrode (orange)				$ 25.03
NI	W10146037		Wire, Electrode				$ 34.01
NI	W10624584		Cord, Power				$ 189.57
NI	W11675299		Tie, Cable   (Replaces: W10368807)				$ 13.53
