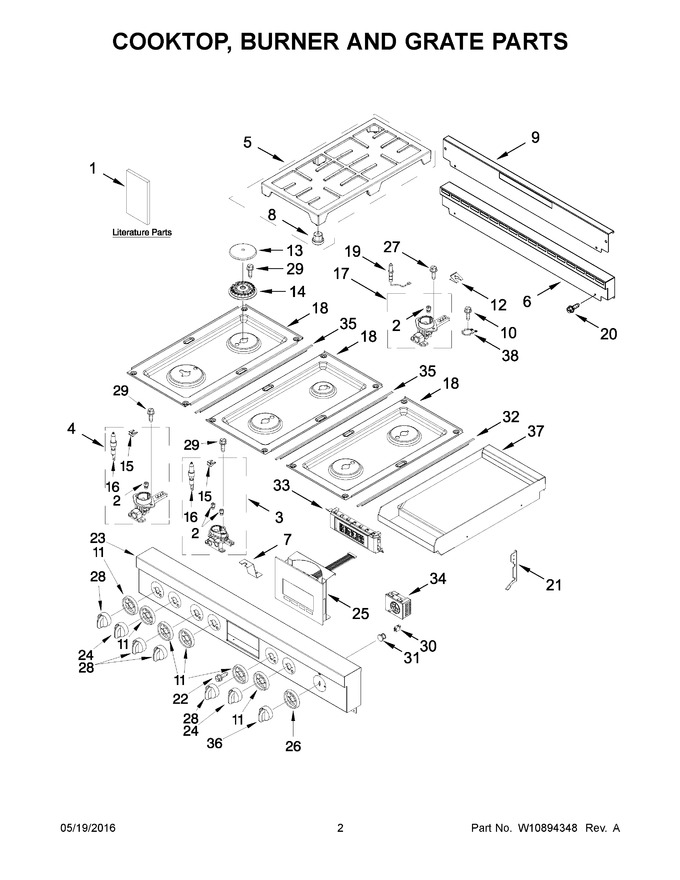

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10821591		Instructions, Installation		Appelez-nous	-
2	W10340425		Orifice (high) (left Front & Right Front)		Appelez-nous	-
3	W10813979		Assembly, Orifice Holder (left Front & Right Front)		Appelez-nous	-
4	W10813992		Assembly, Orifice Holder (left Rear, Right Rear, Center Front)		Appelez-nous	-
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 218.28
6	W10323251		Trim, Island				$ 318.88
7	3801F946-51		Bracket, Orifice Support		Appelez-nous	-
8	W10185266		Bumper, Grate   (Replaces: 8286695)			Immediately	$ 15.47
9	W10323252		Trim, Island Insert				$ 207.83
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
11	W10276494		Bezel, Front				$ 80.42
12	8286863		Spring, Electrode (center Rear)				$ 76.92
13	WPW10256034		Cap, Burner (black) (left Front & Right Front)   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front & Right Front)   (Replaces: W10495853)			Immediately	$ 97.21
15	W10256046		Spring, Electrode (all Except Center Rear)				$ 11.56
16	W10833887		Electrode, Burner (all Except Center Rear)   (Replaces: W10256047)			Immediately	$ 50.65
17	W10813995		Assembly, Orifice Holder (center Rear)		Appelez-nous	-
18	W10352969		Cooktop (black (left))				$ 335.75
19	8286724		Electrode, Burner (center Rear)				$ 30.12
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
23	W10789955		Assembly, Console				$ 573.45
24	W10145568		Knob, Dual (stainless) (left Front & Right Front)				$ 52.92
25	W10464534		Assembly, Keypad				$ 1,125.19
26	W10145453		Bezel, Griddle				$ 80.42
27	W11676349		Screw   (Replaces: 8286921)			Immediately	$ 14.76
28	W10145454		Knob, Single (stainless) (left Rear, Right Rear, Center Front, Center Rear)				$ 46.94
29	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 311.25
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
35	W10271524		T-strip				$ 212.34
36	W10145566		Knob, Griddle (stainless)			Immediately	$ 51.66
37	W10625221		Module, Griddle				$ 1,457.32
38	8286930		Gasket, Orifice				$ 95.73
13A	WPW10256032		Cap, Burner (black) (left Rear, Right Rear, Center Front)   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black) (center Rear)   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear, Right Rear, Center Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10282515		Spreader, Flame (center Rear)   (Replaces: W10282515)			Immediately	$ 149.87
18A	W10352963		Cooktop (black (right))				$ 317.55
18B	W10352966		Cooktop (black (center))				$ 320.43
1A	W10837388		Guide, Use & Care		Appelez-nous	-
1B	W10403310		Sheet, Tech (english)		Appelez-nous	-
1C	W10403311		Sheet, Tech (french)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
2A	W10371246		Orifice (low) (left Front & Right Front)		Appelez-nous	-
2B	W10371247		Orifice (11k) (left Rear, Right Rear, Center Front)		Appelez-nous	-
2C	W10282664		Orifice (3k) (center Rear)		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10116169		Harness, Main				$ 462.88
NI	W10116146		Harness, Griddle		Appelez-nous	-
NI	W10399611		Harness, Switch				$ 138.15
NI	W10507832		Harness, Ignitior				$ 165.54
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W10344051		Harness, Communication				$ 133.32
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10624584		Cord, Power				$ 189.57
NI	W10146036		Wire, Electrode (orange)				$ 25.03
NI	W10146037		Wire, Electrode				$ 34.01
NI	4450800		Screw, Grounding				$ 13.47
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	W10323791		Kit, Lp Conversion		Appelez-nous	-
NI	W11675299		Tie, Cable   (Replaces: W10368807)				$ 13.53
