01 - Cover Sheet

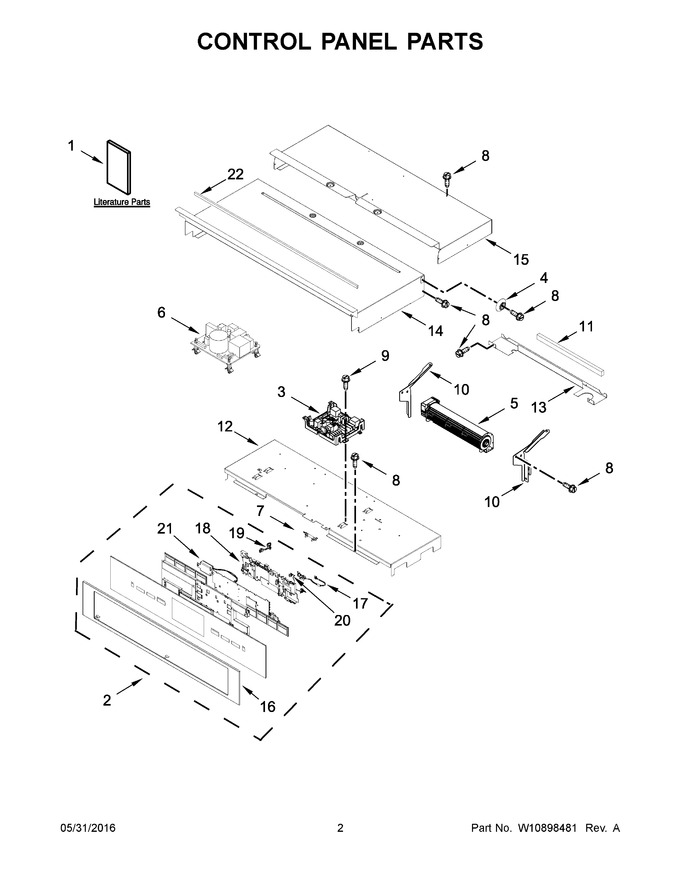

02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10754337		Guide, Use & Care		Appelez-nous	-
2	W11087468		Assembly, Control Panel (stainless)   (Replaces: W10713566)				$ 1,667.03
3	W10821712		Manager, Appliance   (Replaces: W10635086)			Immediately	$ 497.48
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 313.73
6	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 285.62
7	W11204568		Fuse, Thermal   (Replaces: W10782117)			Immediately	$ 118.42
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.33
12	W10694467		Tray, Electronic		Appelez-nous	-
13	W10655465		Chassis, Back Divider		Appelez-nous	-
14	W10444125		Chassis, Cover Top Front 30		Appelez-nous	-
15	W10904156		Chassis, Cover Top Back 30   (Replaces: W10667383)		Appelez-nous	-
16	W10444132		Skin, Control Panel (stainless)				$ 273.15
17	W10575307		Harness, Power Supply			Immediately	$ 156.46
18	W10668510		Housing				$ 94.65
19	W10566973		Harness, Keypad (left To Center)				$ 73.97
20	W10524350		Harness, Keypad (right To Center)				$ 70.39
21	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
22	W10728475		Gasket, Rubber				$ 34.32
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10790014		Instructions, Installation		Appelez-nous	-
1B	W10767737		Sheet, Tech		Appelez-nous	-
1C	W10351318		Instructions, Undercounter Install		Appelez-nous	-
NI	W10487999		Clip, Harness				$ 19.01
NI	4452400		Strap, Lead Ground				$ 40.88
NI	4448664		Clamp, Conduit				$ 19.27
NI	W10655464		Bracket, Harness				$ 36.64
NI	W10775486		Bracket, Fuse		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11132992		Harness, Main   (Replaces: W10571360)				$ 224.87
NI	W11226263		Harness, Signal   (Replaces: W10517751)				$ 208.01
NI	W11132989		Harness, Door Latch   (Replaces: W10775068)				$ 107.08
NI	W10766153		Assembly, Antenna & Housing				$ 168.60
NI	W11699910		Harness, Eol   (Replaces: W10562910)				$ 29.66
NI	4450800		Screw, Grounding				$ 12.12
