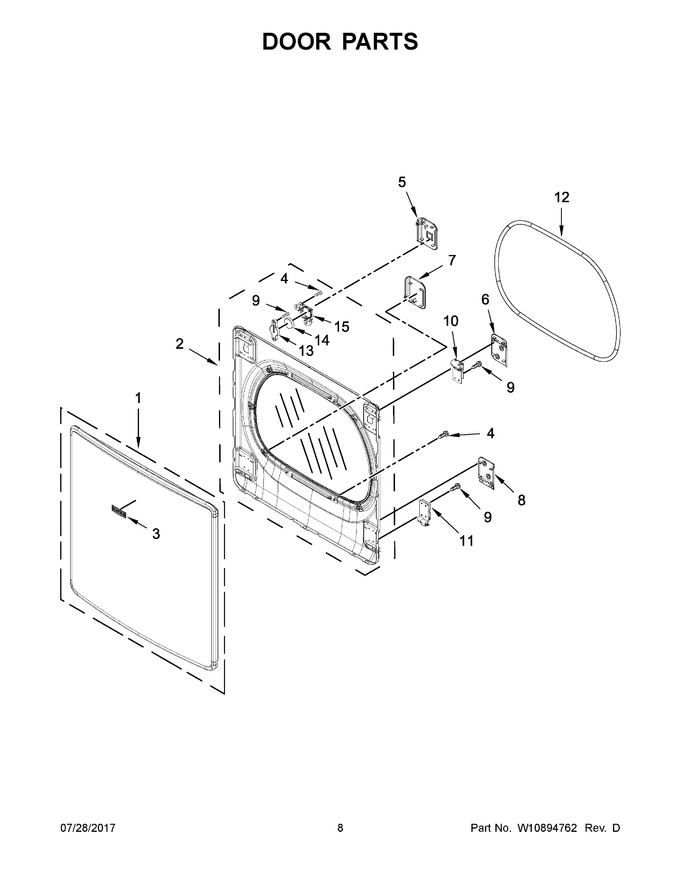

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10652657		Door Assembly, Outer		Appelez-nous	-
2	W10903212		Assembly, Inner Door (white)   (Replaces: W10870126)		Appelez-nous	-
3	WPW10612926		Badge   (Replaces: W10612926)			Immediately	$ 39.60
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
5	W10857615		Cover, Door Catch (white)				$ 90.64
6	W10635117		Hinge Cover, Top (white)		Appelez-nous	-
7	W10808672		Hinge Cover, Bottom Left (white)   (Replaces: W10635118)				$ 103.41
8	W10635119		Hinge Cover, Bottom Right (white)		Appelez-nous	-
9	WP488627		Screw   (Replaces: 342055)				$ 8.11
10	W10635131		Hinge Assembly, Door - A		Appelez-nous	-
11	W10635137		Hinge Assembly, Door - B		Appelez-nous	-
12	W10763835		Seal, Door			Immediately	$ 129.79
13	W10850388		Shim, Metal		Appelez-nous	-
14	W10850386		Magnet		Appelez-nous	-
15	W10857617		Housing, Magnet (white)		Appelez-nous	-
15A	W10857618		Housing, Magnet (grey)				$ 26.60
2A	W10870127		Assembly, Inner Door (chrome Shadow)		Appelez-nous	-
5A	W10857616		Cover, Door Catch (grey)				$ 53.95
6A	W10661174		Hinge Cover, Top (grey)				$ 49.32
7A	W10808672		Hinge Cover, Bottom Left (grey)   (Replaces: W10661175)				$ 103.41
8A	W10661176		Hinge Cover, Bottom Right (grey)				$ 49.08

    View Diagram in Separate Window       Print Part List
