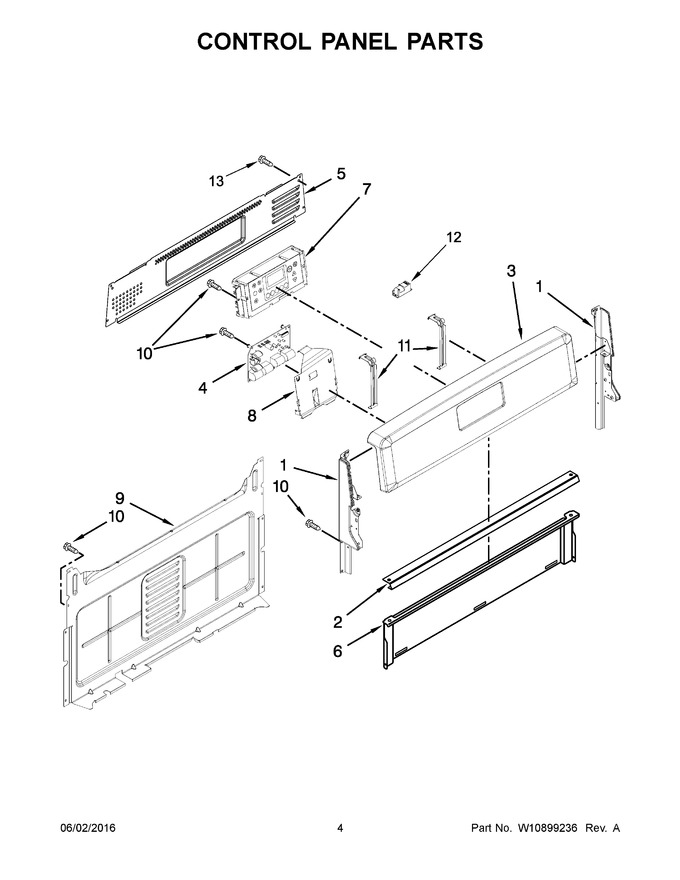

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)				$ 153.83
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W10655861		Console (black)				$ 129.57
4	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 352.23
5	W10198745		Cover, Upper				$ 128.90
6	W10192841		Shield, Heat				$ 106.69
7	WPW10655862		Control, Lcc195 (black)   (Replaces: W10655862)				$ 295.02
8	W10516463		Bracket, Dsi		Appelez-nous	-
9	W10184370		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
11	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
12	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 322.41
13	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
1A	W11219365		Endcap (white (left))   (Replaces: W10184433)				$ 42.45
1B	W11219665		Endcap (black (right))   (Replaces: W10184438)				$ 45.17
1C	W11219370		Endcap (white (right))   (Replaces: W10184434)				$ 60.83
3A	W10655858		Console (white)				$ 180.89
3B	W10655864		Console (stainless)				$ 135.26
7A	WPW10655859		Control, Lcc195 (white)   (Replaces: W10655859)				$ 298.87
7B	WPW10655865		Control, Lcc195 (stainless)   (Replaces: W10655865)				$ 263.68
