SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

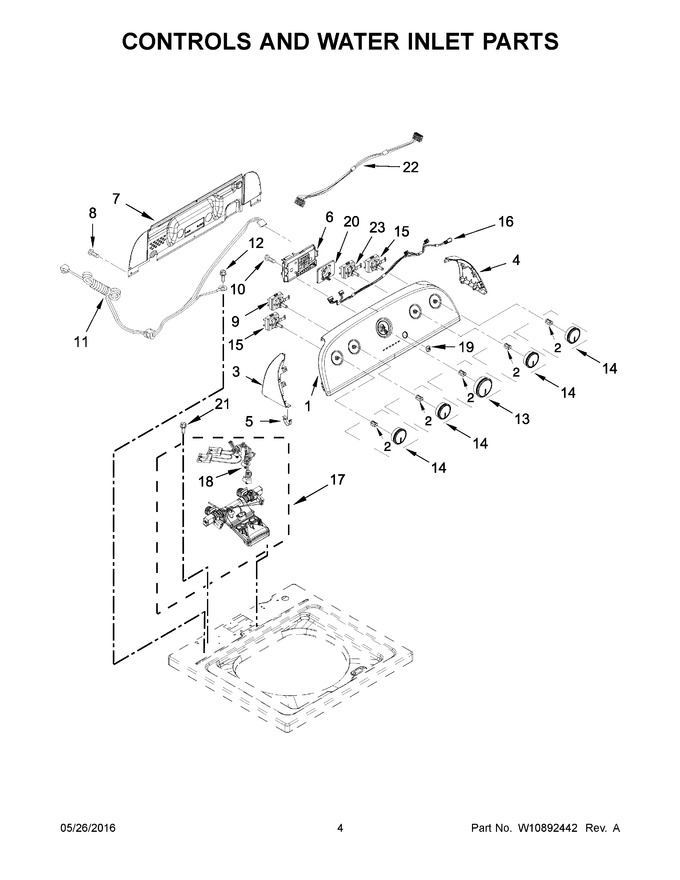

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11099224		Panel, Console   (Replaces: W10774517)		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 64.69
4	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 64.34
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 17.40
6	W11124780		Control Unit Assembly, Machine And Motor   (Replaces: W10885811)		Appelez-nous	-
7	W10552335		Panel, Console Rear Cover				$ 343.17
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	W10877409		Cord, Power   (Replaces: W10737739)				$ 130.00
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10576635		Knob, Timer (white/metallic)   (Replaces: W10576635)				$ 52.72
14	WPW10576637		Assembly, Control Knob (white/metallic)   (Replaces: W10576637)				$ 54.56
15	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
16	W11211519		Harness, Upper   (Replaces: W10694680)				$ 184.80
17	W11210461		Inlet Assembly, Water   (Replaces: W10789992)				$ 229.85
18	W10678671		Harness, Valve				$ 185.37
19	W11084340		Grommet, Push To Start   (Replaces: W10598040)				$ 73.85
20	WPW10596298		Button, Push To Start   (Replaces: W10596298)				$ 72.98
21	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
22	W10786100		Harness, Jumper				$ 189.98
23	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 135.86
