01 - Cover Sheet

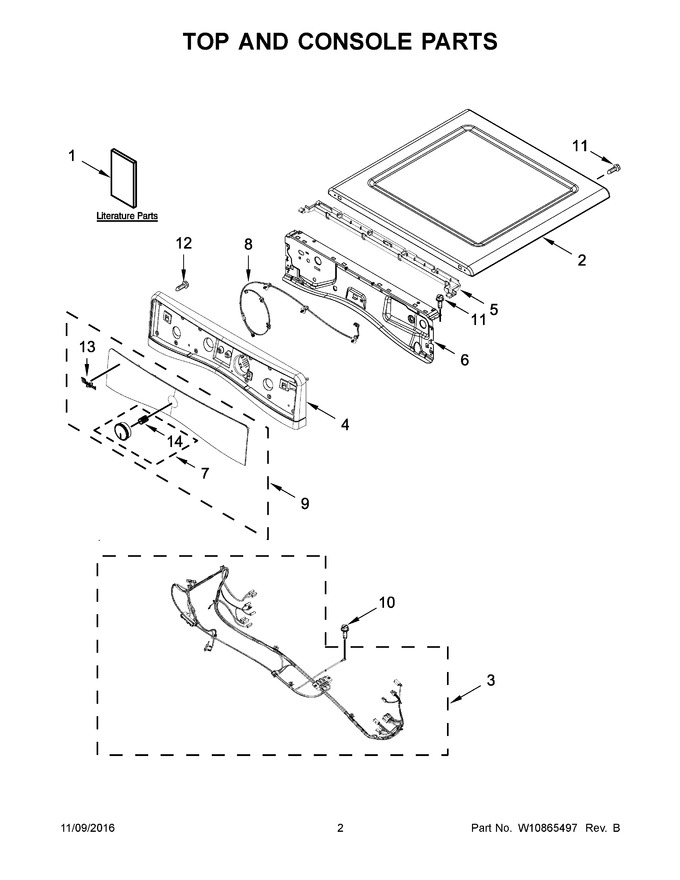

02 - Top And Console Parts
03 - Cabinet Parts
04 - Base Parts
05 - Bulkhead Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10777516 | Owners Manual |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | W10635057 | Wiring Harness |
|
- | |||||
| 4 | WPW10391519 | Panel, Console (white) (Replaces: W10391519) |
|
Immediately | $ 167.22 | ||||
| 5 | WPW10653575 | Channel, Water (Replaces: W10653575) |
|
$ 81.85 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W10875909 | Assembly, Timer Knob (chrome) (Replaces: W10783726) |
|
Immediately | $ 47.69 | ||||
| 8 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 30.25 | |||||
| 9 | W10919220 | User Interface (white) (Replaces: W10825135) |
|
- | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 12 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 13 | W10510981 | Badge (white) |
|
- | |||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 13A | W10510982 | Badge (grey) |
|
$ 75.32 | |||||
| 1A | W10777574 | Installation Instructions |
|
- | |||||
| 1B | W10777576 | Tech Sheet |
|
- | |||||
| 1C | W10777588 | Quickstart Guide |
|
- | |||||
| 2A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 273.29 | |||||
| 4A | W10876224 | Panel, Console (chrome Shadow) (Replaces: W10463690) |
|
$ 365.54 | |||||
| 9A | W10919221 | User Interface (chrome Shadow) (Replaces: W10825136) |
|
- |
