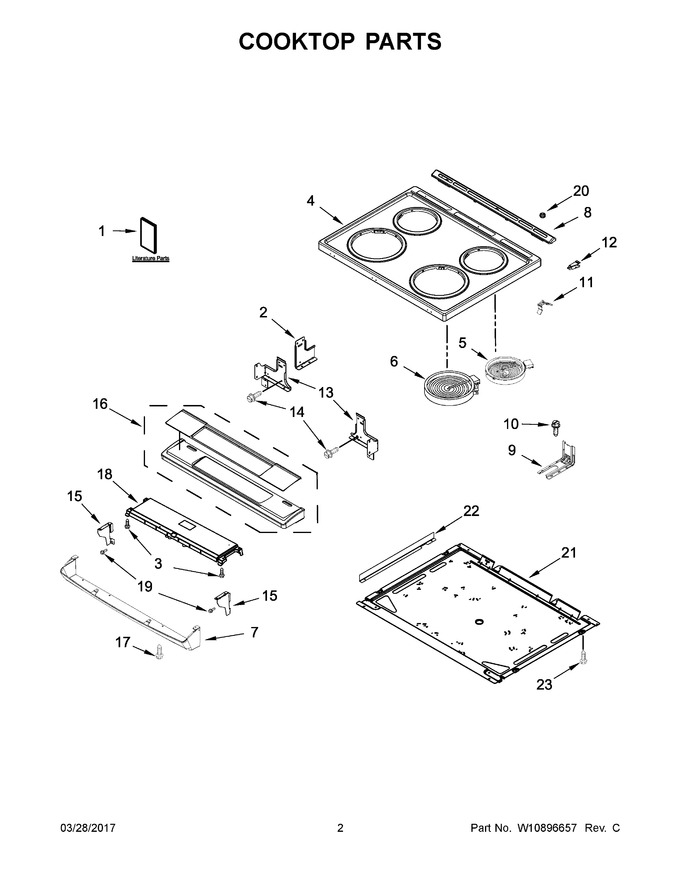

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10842014 | Instructions, Installation |
|
- | |||||
| 2 | W10814305 | Bracket, Console (center) |
|
- | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 4 | W11043368 | Cooktop (white) (Replaces: W10825868) |
|
$ 980.04 | |||||
| 5 | W11171119 | Element (1200w) (left Front And Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 6 | W11517959 | Element (3000/1400w) (right Front And Left Rear) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 7 | W10894127 | Panel, Front (white) (Replaces: W10816942) |
|
Immediately | $ 535.85 | ||||
| 8 | W10636527 | Vent, Trim Top (white) |
|
$ 251.33 | |||||
| 9 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 23.03 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 11 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10814303 | Support, Cooktop (left) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W10893945 | Console (white) (Replaces: W10825351) |
|
$ 592.71 | |||||
| 17 | W10516115 | Screw |
|
$ 14.52 | |||||
| 18 | W10894098 | Electronic, Control (lcx) (Replaces: W10806890) |
|
Immediately | $ 412.97 | ||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 20 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 21 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 22 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 77.91 | |||||
| 23 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10814304 | Support, Cooktop (right) |
|
- | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 16A | W10893944 | Console (black) (Replaces: W10825354) |
|
Immediately | $ 593.87 | ||||
| 16B | W10893947 | Console (stainless) (Replaces: W10825357) |
|
Immediately | $ 474.56 | ||||
| 1A | W10887092 | Use And Care Guide |
|
- | |||||
| 1B | W10842035 | Tech Sheet |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10850076 | Wiring Diagram |
|
- | |||||
| 4A | W11040044 | Cooktop (black) (Replaces: W10825867) |
|
$ 555.82 | |||||
| 7A | W10894124 | Panel, Front (black) (Replaces: W10816943) |
|
$ 560.36 | |||||
| 8A | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10876233 | Harness, Main |
|
$ 151.64 | |||||
| NI | W10664316 | Clip, Harness |
|
$ 20.97 | |||||
| NI | W10800463 | Harness, Cooktop |
|
$ 172.63 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | W11172419 | Harness, Console (Replaces: W10800459) |
|
$ 233.10 |
