01 - Cover Sheet

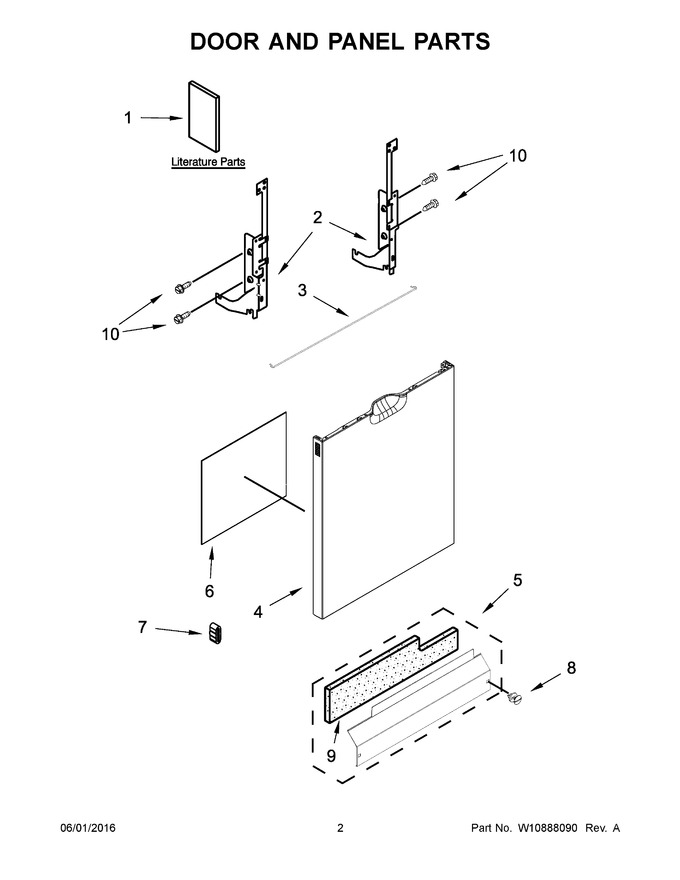

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10380392		Installation Instructions		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11744284		Panel Front (stainless)   (Replaces: W10671878)				$ 505.61
5	W10827608		Access Panel (black)   (Replaces: W10799073)				$ 180.76
6	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 6.68
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
1A	W10810665		Energy Guide		Appelez-nous	-
1B	W10671840		Use & Care Manual		Appelez-nous	-
1C	W10849767		Tech Sheet, English		Appelez-nous	-
1D	W10849768		Tech Sheet, French		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 83.93

    View Diagram in Separate Window       Print Part List
