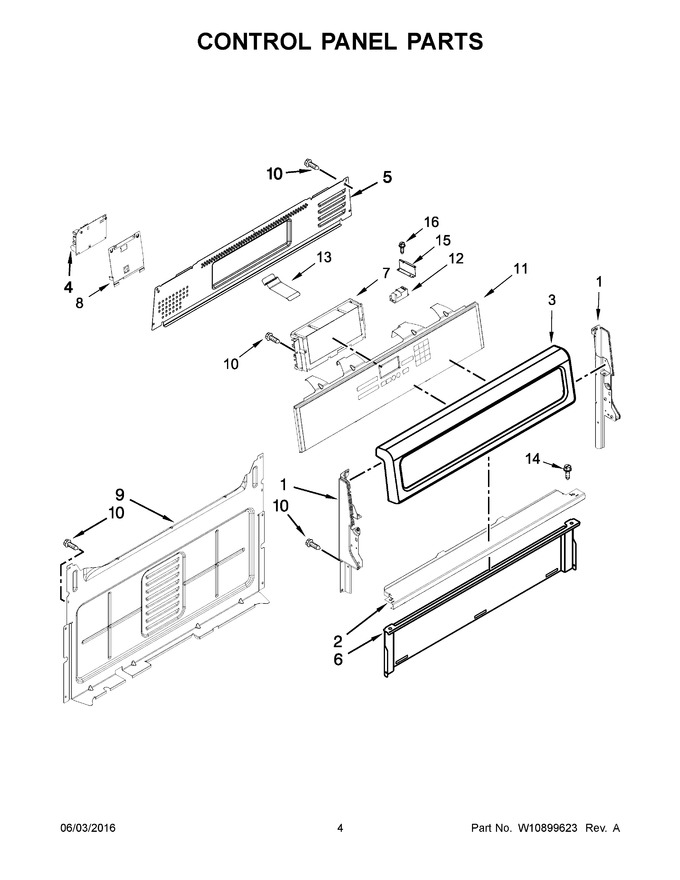

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | WPW10318551 | Console (black) (Replaces: W10318551) |
|
$ 272.41 | |||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 239.59 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | WPW10340317 | Control, Mrc (Replaces: W10340317) |
|
$ 489.74 | |||||
| 8 | W10762981 | Bracket, Mounting |
|
$ 76.42 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W10678666 | Assembly, Active Overlay (for Stainless & Black Ice Models) (Replaces: W10318563) |
|
$ 346.14 | |||||
| 12 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 179.05 | ||||
| 13 | WPW10551614 | Clip, Spreadder (Replaces: W10551614) |
|
$ 13.73 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 16 | W10674068 | Screw |
|
$ 24.39 | |||||
| 11A | W10730200 | Assembly, Active Overlay (stainless (for White Ice Models)) |
|
$ 436.93 | |||||
| 1A | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1B | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1C | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 3A | WPW10318552 | Console (white) (Replaces: W10318552) |
|
Immediately | $ 282.47 | ||||
| 3B | WPW10318550 | Console (stainless) (Replaces: W10318550) |
|
$ 273.23 |
