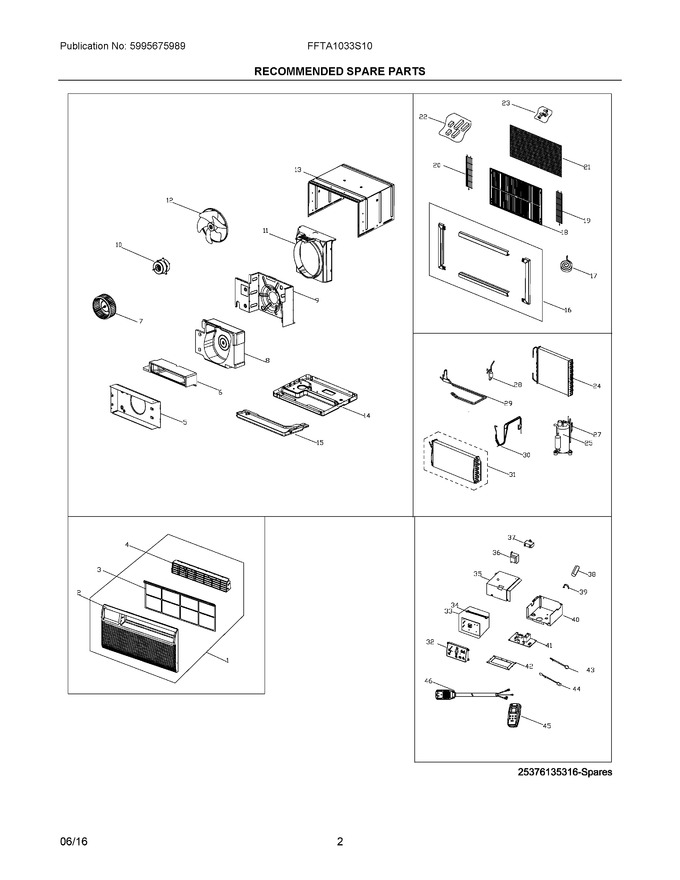

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304476434		Front Assembly, Complete Panel		Appelez-nous	-
2	5304476435		Panel, Front Grille		Appelez-nous	-
3	5304476436		Filter, Air, Plastic Frame		Appelez-nous	-
4	5304476437		Louver, Horizontal		Appelez-nous	-
5	5304501965		Box, Installation, Heater		Appelez-nous	-
6	5304501084		Scroll, Blower Housing, Front		Appelez-nous	-
7	5304471193		Blower Wheel, Centrifugal Fan				$ 85.05
8	5304501085		Scroll, Blower Housing, Rear		Appelez-nous	-
9	5304501086		Bulkhead, Partition, Air System		Appelez-nous	-
10	5304536638		Motor, Fan   (Replaces: 5304499951)		Appelez-nous	-
11	5304501088		Shroud, Fan Housing, Condenser		Appelez-nous	-
12	5304470971		Fan Blade				$ 82.41
13	5304501087		Cabinet, Wrapper/sleeve		Appelez-nous	-
14	5304501089		Base, Unit Chassis		Appelez-nous	-
15	5304501090		Tray, Drip Pan, Foam		Appelez-nous	-
16	5304476442		Trim, Frame, Top/bottom/side		Appelez-nous	-
17	5304470974		Seal, Stuffer, Foam, Wall/sleeve		Appelez-nous	-
18	5304482549		Grille, Sleeve, Aluminum, Rear		Appelez-nous	-
19	5304501091		Grille, Air Inlet, Right Rear		Appelez-nous	-
20	5304501092		Grille, Air Inlet, Left Rear		Appelez-nous	-
21	5304470975		Grille, Plastic, Rear		Appelez-nous	-
22	5304470979		Seal & Spacer Kit		Appelez-nous	-
23	5304470978		Fastener Kit, Rear Grille, Screws		Appelez-nous	-
24	5304521221		Condenser   (Replaces: 5304501103)		Appelez-nous	-
25	5304504985		Compressor, Built-in Ovld		Appelez-nous	-
27	5304495506		Tube, Discharge		Appelez-nous	-
28	5304476367		Filter-drier				$ 45.55
29	5304504872		Tube, Condensate Evap, Drain Pan		Appelez-nous	-
30	5304501966		Tube, Capillary		Appelez-nous	-
31	5304504986		Evaporator		Appelez-nous	-
32	5304496448		Control Panel, With Overlay		Appelez-nous	-
33	5304501096		Pc Board, Display/input		Appelez-nous	-
34	5304480400		Wire, Connector, Pc Boards		Appelez-nous	-
35	5304501097		Cover, Control Box		Appelez-nous	-
36	5304470989		Transformer				$ 94.98
37	5304483052		Capacitor, Fan Motor		Appelez-nous	-
38	5304496461		Capacitor, Compressor		Appelez-nous	-
39	5304501069		Clamp, Capacitor		Appelez-nous	-
40	5304501099		Control Box		Appelez-nous	-
41	5304537436		Pc Board, Control, Main   (Replaces: 5304495510)		Appelez-nous	-
42	5304495029		Holder, Mounting Plate, Control		Appelez-nous	-
43	5304512375		Sensor, Temperature, Evaporator   (Replaces: 5304471383)				$ 33.16
44	5304512374		Thermistor, Temp Sensor, Indoor   (Replaces: 5304491883)		Appelez-nous	-
45	5304476618		Remote Control, Transmitter		Appelez-nous	-
46	5304536807		Power Cord, Electric, Lcdi   (Replaces: 5304500884)				$ 140.95
