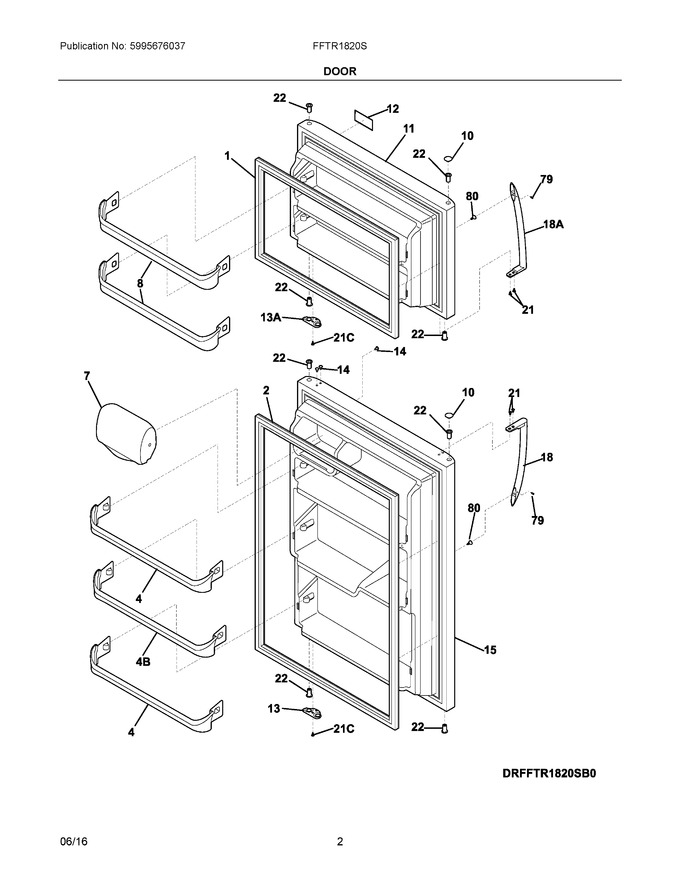

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193203		Gasket-frzr Door, White, Magnetic			Immediately	$ 219.58
2	242193206		Gasket-refr Door, White, Magnetic			Immediately	$ 219.58
4	240534901		Rack-door			Immediately	$ 52.25
7	240337712		Door-dairy			Immediately	$ 40.45
8	240534801		Rack-door			Immediately	$ 55.13
10	240381301		Plug-button, White, Hinge Brg Hole, (2)			Immediately	$ 21.06
11	240410201		Door-frzr, White, Complete Assy				$ 518.69
12	242016301		Nameplate, Frigidaire				$ 4.73
13	240312421		Door Stop, White, Ref   (Replaces: 240312403)				$ 16.85
14	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 20.22
15	241798501		Door-refr, White, Complete Assy   (Replaces: 240410301)			Immediately	$ 603.65
18	5303918823		Handle-door, White, Refr-rh/frzr-lh   (Replaces: 241977503)			Immediately	$ 58.14
21	240383407		Screw, Truss Hd Quad, #10-16 X .500, White				$ 14.18
22	5304507146		Bearing-hinge, Natural Color   (Replaces: 240527101)			Immediately	$ 8.43
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 22.84
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
13A	240312414		Door Stop, White, Frzr				$ 21.26
18A	5303918823		Handle-door, White, Refr-lh/frzr-rh   (Replaces: 241977504)			Immediately	$ 58.14
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
4B	240534701		Rack-door, 4b			Immediately	$ 32.00
NIA	241601001		Wrench, Allen		Appelez-nous	-
