SELECT A DIAGRAM

01 - Cover Sheet

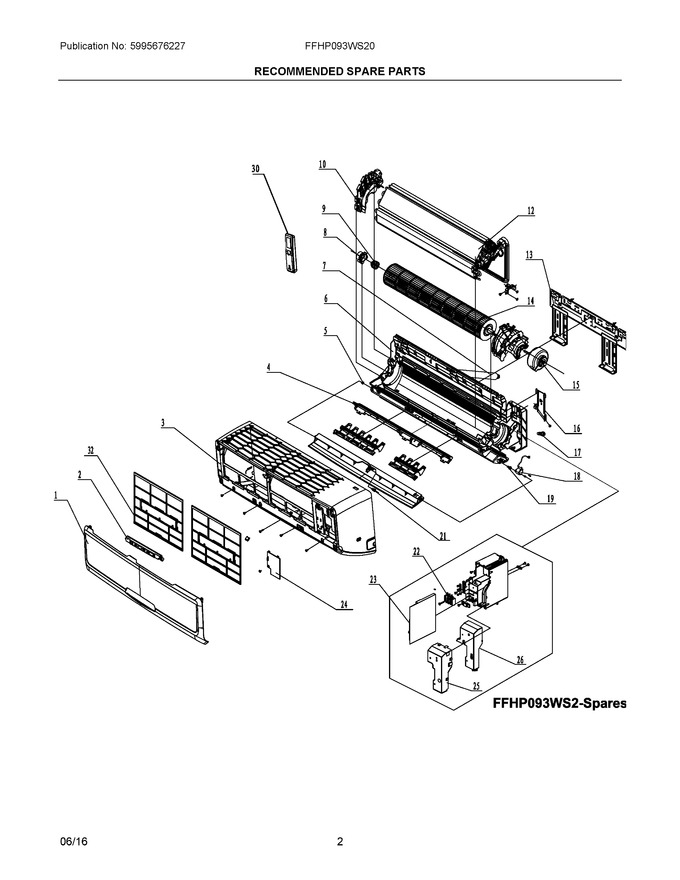

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505705		Panel, Front		Appelez-nous	-
2	5304505706		Pc Board, Display/input				$ 146.71
3	5304505707		Frame, Front Assembly		Appelez-nous	-
4	5304505708		Diffuser, Air Vent, Main Louver		Appelez-nous	-
5	5304482905		Bushing, Louver Shaft, Left		Appelez-nous	-
6	5304505709		Casing, Rear		Appelez-nous	-
7	5304483590		Hose, Drain		Appelez-nous	-
8	5304482777		Bearing Block, Housing, W/o'ring				$ 10.61
9	5304502202		O'ring, Bearing, Gasket/seal				$ 20.48
10	5304505710		Support, Evaporator		Appelez-nous	-
12	5304505711		Evaporator		Appelez-nous	-
13	5304505712		Plate, Installation, Wall Mount		Appelez-nous	-
14	5304505713		Blower Wheel, Cross Flow Fan				$ 122.90
15	5304505714		Motor, Blower Fan				$ 465.24
16	5304505716		Clamp, Drain Hose		Appelez-nous	-
17	5304482805		Drain Plug, Drip Tray		Appelez-nous	-
18	5304505717		Motor, Louver, Horizontal				$ 377.53
19	5304505718		Lever, Louver Control, Crank		Appelez-nous	-
21	5304502199		Bushing, Lower Shaft				$ 18.79
22	5304482804		Terminal Block, 4-bit		Appelez-nous	-
23	5304505719		Pc Board, Main, Control/power		Appelez-nous	-
24	5304505720		Cover, Elec Access, Control Box		Appelez-nous	-
25	5304505721		Shield, Cover, Control Box		Appelez-nous	-
26	5304505722		Cover, Control Box		Appelez-nous	-
30	5304505723		Remote Control, Transmitter				$ 224.84
32	5304506538		Filter, Air		Appelez-nous	-
