SELECT A DIAGRAM

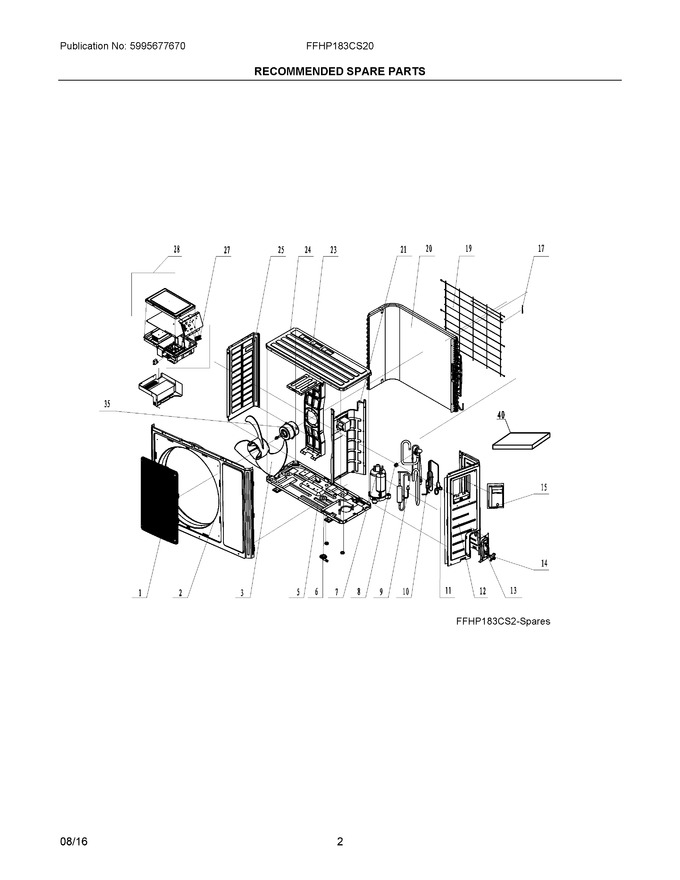

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483702		Grille, Front		Appelez-nous	-
2	5304505768		Panel, Front		Appelez-nous	-
3	5304483699		Fan Blade, Axial Flow				$ 72.72
5	5304505783		Base, Unit Chassis		Appelez-nous	-
6	5304482867		Connector, Drain		Appelez-nous	-
7	5304505770		Compressor, With Fittings		Appelez-nous	-
8	5304483976		Coil, 4-way Valve		Appelez-nous	-
9	5304505796		Valve, 4-way		Appelez-nous	-
10	5304505771		Tube, Capillary		Appelez-nous	-
11	5304483768		Valve, Cut-off, 1/4		Appelez-nous	-
12	5304505772		Panel, Right Side		Appelez-nous	-
13	5304505773		Bracket, Valve Support		Appelez-nous	-
14	5304505774		Valve, Cut-off, Gas		Appelez-nous	-
15	5304505775		Handle, Right, Wiring Cover		Appelez-nous	-
17	5304505776		Sensor, Temperature		Appelez-nous	-
19	5304505777		Grille, Rear		Appelez-nous	-
20	5304505784		Condenser		Appelez-nous	-
21	5304505779		Bulkhead, Partition		Appelez-nous	-
23	5304505780		Bracket, Motor Support		Appelez-nous	-
24	5304483679		Cover, Unit, Top		Appelez-nous	-
25	5304488523		Panel, Left Side		Appelez-nous	-
27	5304482856		Terminal Block, Pcb Wiring		Appelez-nous	-
28	5304505982		Control Box Assembly				$ 926.34
35	5304502325		Motor, Fan				$ 349.49
40	5304506134		Line Set, 6 X 16 X 7.5m, Tubing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
