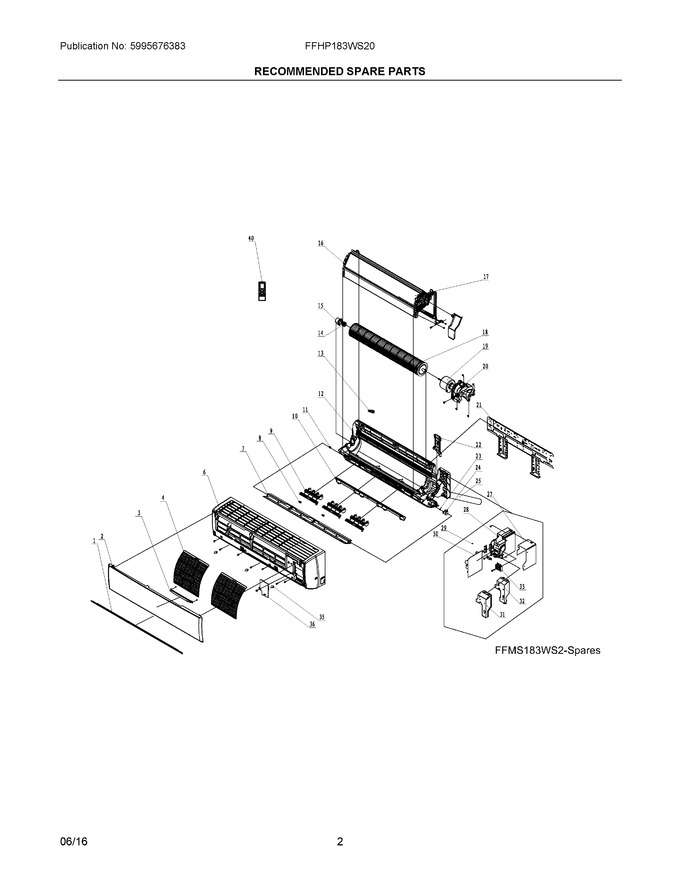

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505741		Strip, Decorative		Appelez-nous	-
2	5304505742		Panel, Front		Appelez-nous	-
3	5304505743		Pc Board, Display/input				$ 320.98
4	5304505744		Filter, Air		Appelez-nous	-
6	5304505745		Frame, Front Assembly				$ 90.87
7	5304505746		Guide, Louver				$ 52.27
8	5304502199		Bushing, Lower Shaft				$ 18.79
9	5304505747		Louver, Air, Manual Op		Appelez-nous	-
10	5304505748		Diffuser, Air Vent, Main Louver				$ 24.81
11	5304482905		Bushing, Louver Shaft, Left		Appelez-nous	-
12	5304505749		Cabinet, Rear		Appelez-nous	-
13	5304482805		Drain Plug, Drip Tray		Appelez-nous	-
14	5304502202		O'ring, Bearing, Gasket/seal				$ 20.48
15	5304483728		Bearing Block, Housing, W/o'ring				$ 2.86
16	5304505750		Support, Evaporator		Appelez-nous	-
17	5304505751		Evaporator		Appelez-nous	-
18	5304505752		Blower Wheel, Cross Flow Fan				$ 153.79
19	5304502362		Motor, Blower Fan			Immediately	$ 528.35
20	5304505753		Housing, Motor Cover		Appelez-nous	-
21	5304505757		Bracket, Mounting Plate, Wall		Appelez-nous	-
22	5304505758		Clamp, Drain Hose		Appelez-nous	-
23	5304505718		Lever, Louver Control, Crank		Appelez-nous	-
24	5304505759		Motor, Louver, Horizontal				$ 87.33
25	5304483590		Hose, Drain		Appelez-nous	-
27	5304505760		Shield, Control Box, Lower		Appelez-nous	-
28	5304505761		Control Box		Appelez-nous	-
29	5304505762		Connector, Electrical, Jumper		Appelez-nous	-
30	5304505719		Pc Board, Main, Control/power		Appelez-nous	-
31	5304505764		Shield, Interference, Electrical		Appelez-nous	-
32	5304505765		Cover, Control Box		Appelez-nous	-
33	5304482804		Terminal Block, 4-bit		Appelez-nous	-
35	5304505766		Cover, Screw Head		Appelez-nous	-
36	5304505767		Cover, Control Box, Outer				$ 16.47
40	5304505723		Remote Control, Transmitter				$ 224.84
