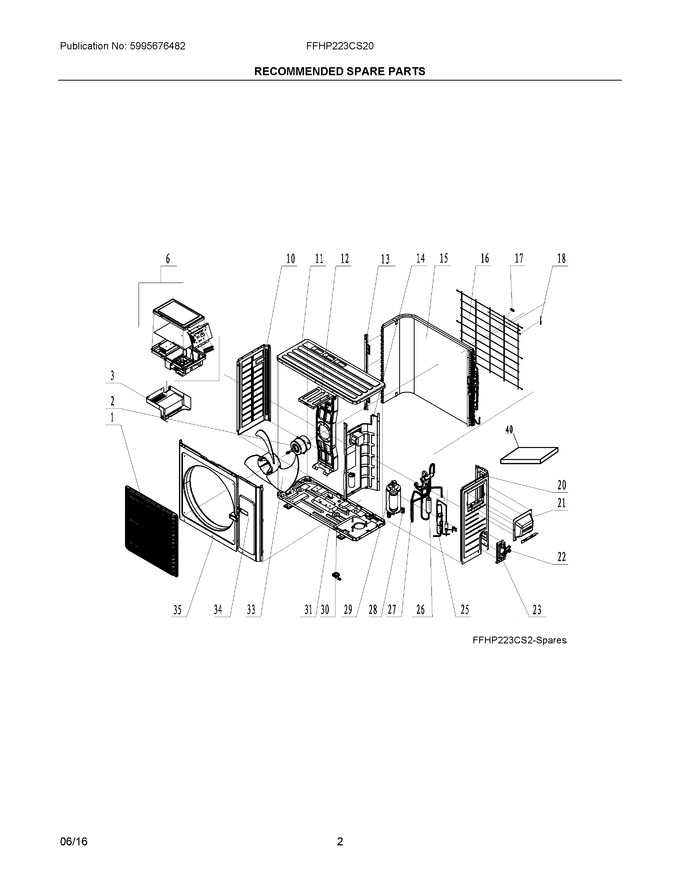

SELECT A DIAGRAM

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483744		Grille, Front		Appelez-nous	-
2	5304502366		Motor, Fan		Appelez-nous	-
3	5304483746		Control Box, Flame Resistant		Appelez-nous	-
6	5304505983		Control Box Assembly		Appelez-nous	-
10	5304483751		Panel, Left Side		Appelez-nous	-
11	5304483752		Cover, Unit, Top		Appelez-nous	-
12	5304483753		Bracket, Motor Support		Appelez-nous	-
13	5304483773		Bracket, Support, Condenser		Appelez-nous	-
14	5304505846		Bulkhead, Partition		Appelez-nous	-
15	5304505847		Condenser		Appelez-nous	-
16	5304483756		Grille, Rear		Appelez-nous	-
17	5304483683		Clamp, Wire		Appelez-nous	-
18	5304483684		Sensor Kit				$ 99.94
20	5304483762		Panel, Right Side		Appelez-nous	-
21	5304502385		Handle, Large, Right				$ 28.98
22	5304483783		Valve, Cut-off, 5/8		Appelez-nous	-
23	5304483766		Bracket, Valve		Appelez-nous	-
25	5304505771		Tube, Capillary		Appelez-nous	-
26	5304505848		Valve, 4-way		Appelez-nous	-
27	5304483715		Coil, 4-way Valve				$ 64.50
28	5304502567		Grommet, Compressor		Appelez-nous	-
29	5304505849		Compressor, With Fittings		Appelez-nous	-
30	5304482867		Connector, Drain		Appelez-nous	-
31	5304505850		Base, Unit Chassis		Appelez-nous	-
33	5304502375		Fan Blade, Propeller		Appelez-nous	-
34	5304502376		Plate, Front/side		Appelez-nous	-
35	5304502377		Panel, Front		Appelez-nous	-
40	5304506134		Line Set, 6 X 16 X 7.5m, Tubing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
