01 - Cover Sheet

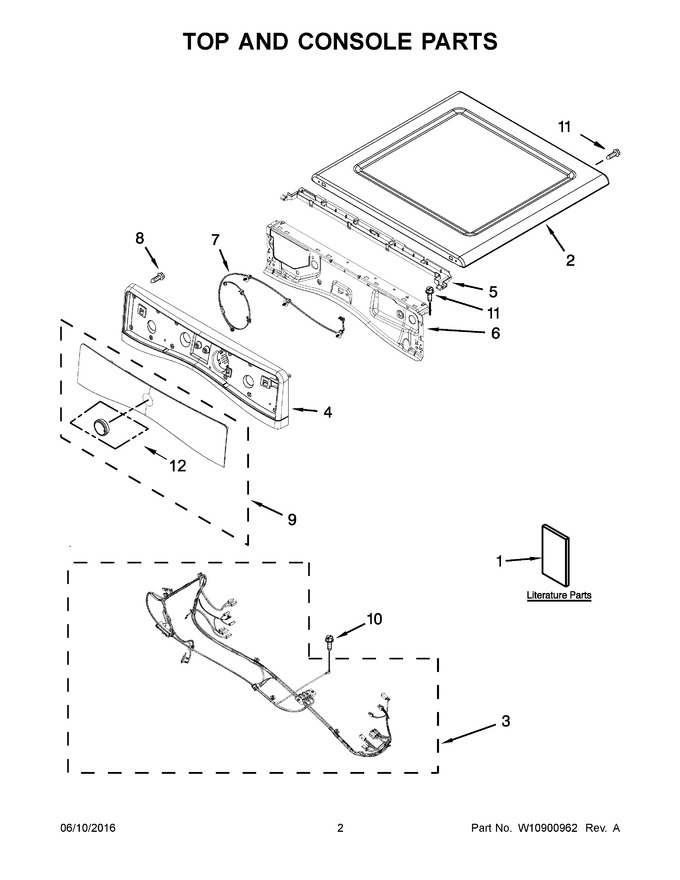

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10573715 | Use And Care Guide |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | W10801124 | Harness, Main Wiring |
|
$ 238.85 | |||||
| 4 | WPW10391519 | Console (white) (Replaces: W10391519) |
|
Immediately | $ 167.22 | ||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 81.85 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W11025125 | Cable, User Interface (Replaces: W10540654) |
|
Immediately | $ 11.94 | ||||
| 8 | W10853898 | Screw (Replaces: W10219342) |
|
$ 7.36 | |||||
| 9 | W10919223 | Assembly, Iml (white) (Replaces: W10750349) |
|
$ 606.23 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 12 | W10652617 | Assembly, Knob (black) |
|
$ 54.68 | |||||
| 1A | W10806847 | Tech Sheet |
|
- | |||||
| 1B | W10806078 | Wiring Diagram |
|
- | |||||
| 1C | W10775221 | Installation Instructions |
|
- |
