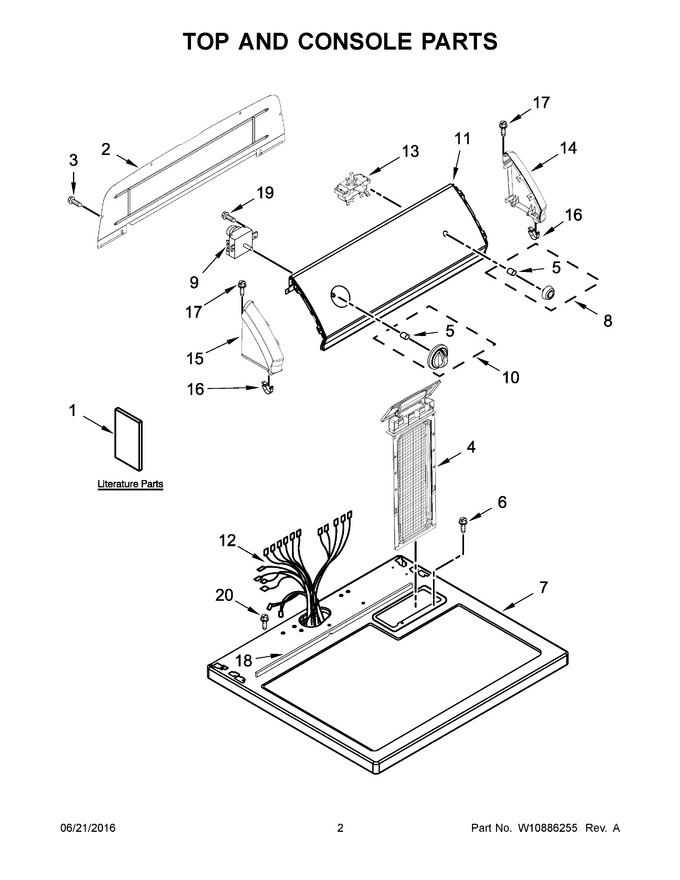

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10848818 | Installation Instructions |
|
- | |||||
| 2 | W10103406 | Panel, Rear (Replaces: 8274261) |
|
$ 135.31 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W11778253 | Screen, Lint (white) (Replaces: W10717210) |
|
Immediately | $ 54.63 | ||||
| 5 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 6 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 7 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 8 | W10317459 | Knob, Push To Start (grey) |
|
- | |||||
| 9 | W10857609 | Timer Assembly (60 Hz.) (Replaces: W10745652) |
|
$ 416.28 | |||||
| 10 | W10317457 | Assembly, Timer Knob (grey) |
|
- | |||||
| 11 | W10784710 | Panel, Control |
|
- | |||||
| 12 | W10865745 | Harness, Wiring |
|
- | |||||
| 13 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 14 | WP8559501 | End Cap (right) (white) (Replaces: 8559501) |
|
$ 72.77 | |||||
| 15 | WP8559502 | End Cap (left) (white) (Replaces: 8559502) |
|
$ 72.99 | |||||
| 16 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 17 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 18 | W10316616 | Seal, Foam |
|
$ 27.79 | |||||
| 19 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 8.81 | |||||
| 20 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 1A | W10096992 | Use & Care Guide |
|
- | |||||
| 1B | W10876323 | Wiring Diagram |
|
- |
