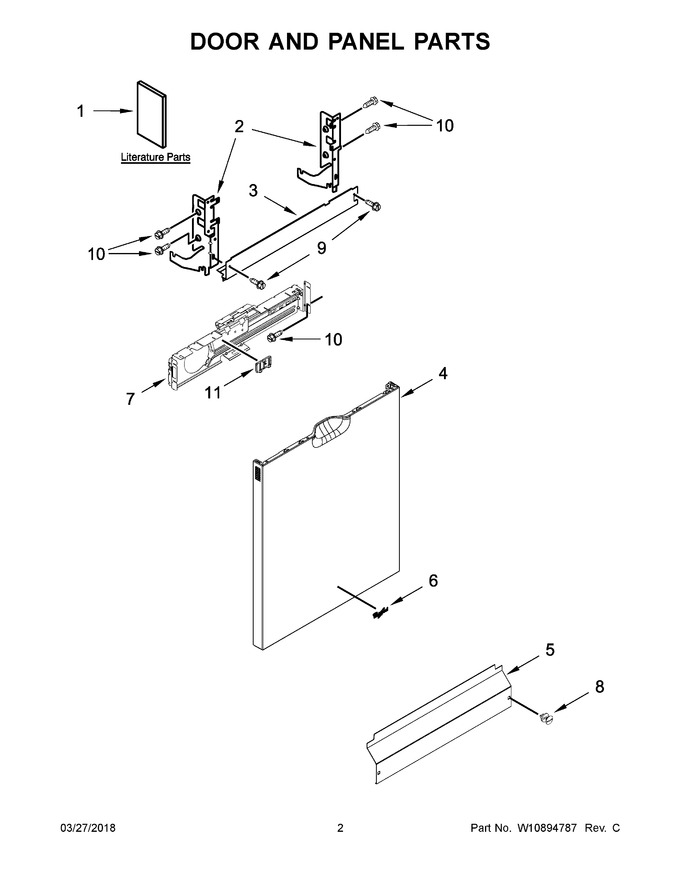

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W11113909		Panel, Front (includes Nameplate) (stainless)   (Replaces: W11040426)		Appelez-nous	-
5	W11763736		Access Panel (black)   (Replaces: W10441006)			Immediately	$ 42.25
6	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
7	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W10463662		Spacer, Control Bracket Panel				$ 49.41
1A	W10921054		Energy Guide		Appelez-nous	-
1B	W10889568		Use & Care Guide		Appelez-nous	-
1C	W10751166		Tech Sheet, English		Appelez-nous	-
1D	W10751168		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
