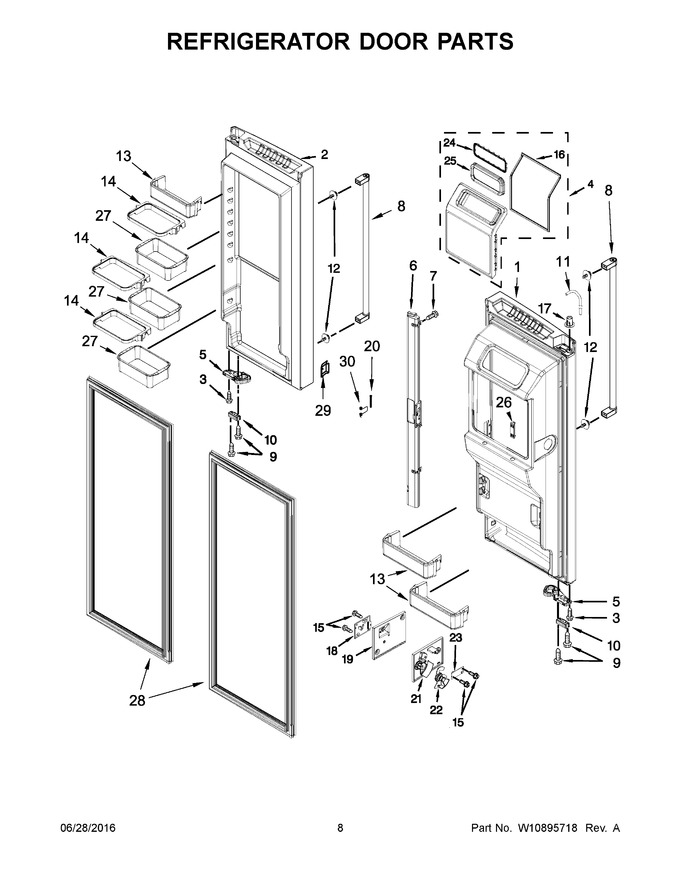

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10919668 | Door, Left (black Stainless) (Replaces: W10880989) |
|
- | |||||
| 2 | W10919672 | Door, Right (black Stainless) (Replaces: W10880902) |
|
- | |||||
| 3 | WPW10464016 | Screw (Replaces: W10464016) |
|
$ 12.94 | |||||
| 4 | W11399564 | Door, Ice (Replaces: W10564705) |
|
Immediately | $ 315.56 | ||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 6 | W10907531 | Mullion, Door (black) (Replaces: W10902032) |
|
$ 154.43 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11483532 | Handle, Door (stainless) (Replaces: W10704121) |
|
Immediately | $ 178.01 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 11 | W10394073 | Tube, Water |
|
$ 126.25 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | W11026418 | Trivet, 2 Liter (Replaces: W10737419) |
|
$ 240.17 | |||||
| 14 | W11098158 | Frame, Bin (Replaces: W10737415) |
|
Immediately | $ 228.87 | ||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 16 | W11625019 | Gasket, Ice Door (Replaces: W10567561) |
|
$ 51.72 | |||||
| 17 | W10562834 | Clip, Tube |
|
$ 15.66 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | W10563326 | Cover, Receiver |
|
$ 22.76 | |||||
| 20 | W10331749 | Pin, Door |
|
- | |||||
| 21 | W10563309 | Cover, Emitter |
|
$ 27.35 | |||||
| 22 | W10563328 | Slide, Icemaker Shut Off |
|
$ 231.76 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 228.05 | ||||
| 24 | W11504381 | Retainer, Ice Chute (Replaces: W10562839) |
|
$ 16.14 | |||||
| 25 | W11706282 | Gasket, Ice Chute (Replaces: W10567563) |
|
$ 127.45 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646867) |
|
Immediately | $ 23.16 | ||||
| 27 | W11026416 | Bucket, Gallon (Replaces: W10737416) |
|
Immediately | $ 118.49 | ||||
| 28 | W10861004 | Gasket, Door (black) (Replaces: W10873939) |
|
$ 331.17 | |||||
| 29 | W10563323 | Door, Emitter |
|
$ 135.47 | |||||
| 30 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 17.59 |
