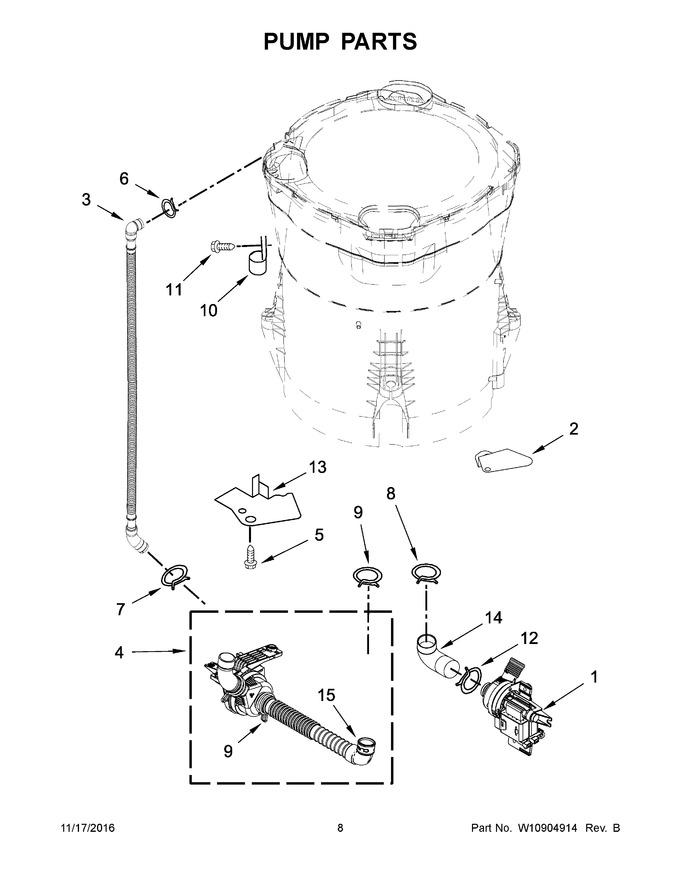

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10876600 | Pump Assembly, Drain (Replaces: W10727777) |
|
Immediately | $ 180.49 | ||||
| 2 | W10637932 | Shield, Heat |
|
$ 28.48 | |||||
| 3 | W10622692 | Hose, Recirculation |
|
$ 63.56 | |||||
| 4 | W10915703 | Pump Assembly, Recirculation (Replaces: W10850007) |
|
$ 335.97 | |||||
| 5 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 6 | 3363365 | Clamp, Hose |
|
$ 10.75 | |||||
| 7 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.12 | |||||
| 8 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.39 | ||||
| 9 | WP285655 | Clamp, Hose (Replaces: W10421047) |
|
Immediately | $ 8.39 | ||||
| 10 | 8534021 | Clamp, Recirc Hose Retainer |
|
$ 8.43 | |||||
| 11 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.00 | ||||
| 12 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 13 | W10637933 | Shield, Recirculation Pump |
|
- | |||||
| 14 | W10802689 | Hose, Tub To Pump (Replaces: W10763259) |
|
$ 32.99 | |||||
| 15 | W11848425 | Hose - Recirculation (tub To Pump) (Replaces: W10763460) |
|
- |
