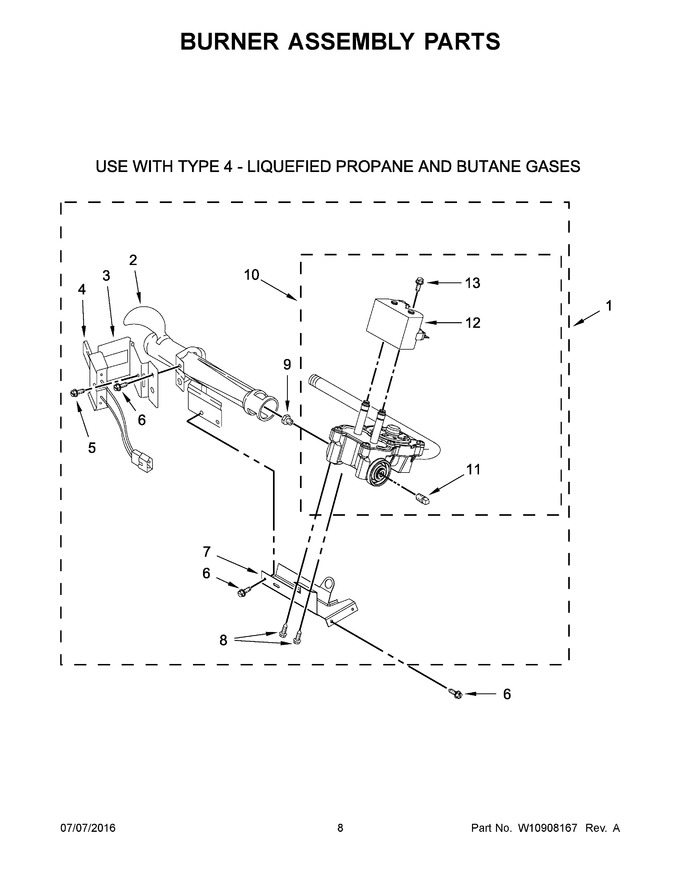

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10832742 | Burner Assembly (60hz) (type 4) |
|
- | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 169.98 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 24.50 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 5 | WPW10366705 | Screw (Replaces: W10366705) |
|
$ 7.09 | |||||
| 6 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 7 | 693986 | Base, Burner |
|
- | |||||
| 8 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 6.80 | ||||
| 9 | WP229742 | Orifice, Burner (type 4 (butane)) (Replaces: 229742) |
|
$ 32.93 | |||||
| 10 | W11102311 | Valve, Gas (Replaces: W10832729) |
|
- | |||||
| 11 | W10295523 | Pipe Plug |
|
- | |||||
| 12 | WPW10328463 | Coil (60 Hz) (Replaces: W10328463) |
|
Immediately | $ 81.86 | ||||
| 13 | 326049536 | Screw |
|
- |
