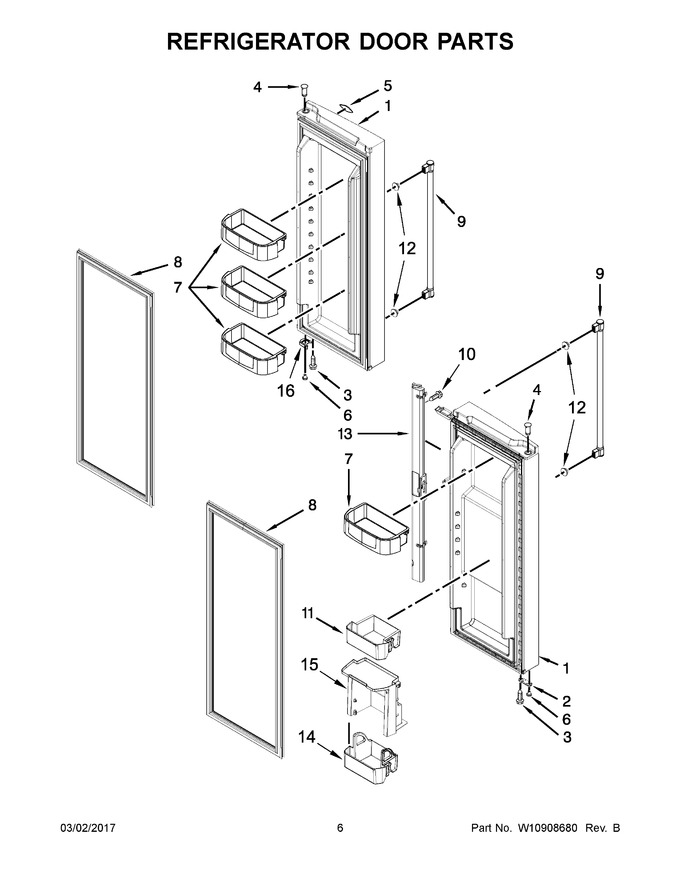

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10858415		Door, Refrigerator (includes Illustration 8) (left Hand (stainless))   (Replaces: W10858415)				$ 915.73
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
4	W11544568		Thimble, Top (white)   (Replaces: W10366270)			Immediately	$ 13.95
5	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 7.55
7	WPW10308869		Bin, Medium   (Replaces: W10331764)			Immediately	$ 81.59
8	WPW10460580		Gasket, Door (grey)   (Replaces: W10413468)			Immediately	$ 282.19
9	W10879677		Assembly, Handle (stainless)   (Replaces: W10838130)			Immediately	$ 215.42
10	W10854958		Screw   (Replaces: 12990302)				$ 7.90
11	WPW10372916		Bin, Shallow   (Replaces: W10372916)				$ 220.96
12	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 10.13
13	WPW10624450		Assembly, Mullion (grey)   (Replaces: W10624450)			Immediately	$ 249.68
14	W10462298		Bin, Low Profile				$ 132.31
15	WPW10317224		Compartment, Utility   (Replaces: W10317224)				$ 103.80
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 36.94
1A	LW10858417		Door, Refrigerator (includes Illustration 8) (right Hand (stainless))   (Replaces: W10858417)				$ 840.29
