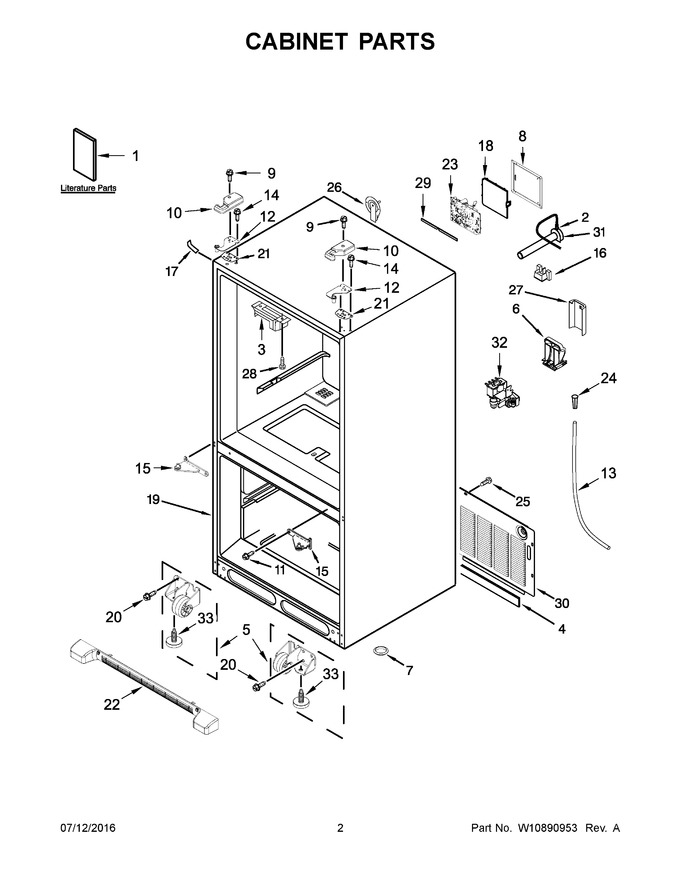

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10635370 | Use And Care Guide |
|
- | |||||
| 2 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 6 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 7 | A3076901 | Plug, Button (black) |
|
$ 5.70 | |||||
| 8 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W10337647 | Cover, Top Hinge Left Hand (black) |
|
Immediately | $ 23.33 | ||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 13 | W11120581 | Tubing, Plastic (Replaces: B5705333) |
|
$ 124.93 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918164 | Hinge, Center Left Hand (black) (Replaces: 13000007ED) |
|
$ 91.53 | |||||
| 16 | W11686793 | Block, Fill Tube (Replaces: W10658542) |
|
$ 23.57 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 85.16 | |||||
| 19 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | 12999501 | Shim, Hinge (left Hand) |
|
$ 99.53 | |||||
| 22 | WPW10534153 | Assembly, Grille (includes Clips) (black) (Replaces: W10534153) |
|
$ 154.57 | |||||
| 23 | WPW10317076 | Board, Hv Control (Replaces: W10317076) |
|
Immediately | $ 412.84 | ||||
| 24 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 28 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 29 | 12957801 | Gasket, Control Box |
|
- | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 31 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 | ||||
| 32 | WPW10420083 | Valve, Water Inlet (Replaces: W10420083) |
|
Immediately | $ 159.91 | ||||
| 33 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 10A | WP67005956 | Cover, Top Hinge Right Hand (black) (Replaces: 12962302B) |
|
$ 22.54 | |||||
| 12A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 15A | W10918164 | Hinge, Center Right Hand (black) (Replaces: 13000008ED) |
|
$ 91.53 | |||||
| 1A | W10739663 | Energy Guide |
|
- | |||||
| 1B | W10787424 | Tech Sheet (english) |
|
- | |||||
| 1C | W10787423 | Tech Sheet (french) |
|
- | |||||
| 21A | 12999502 | Shim, Hinge (right Hand) |
|
$ 100.60 | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 |
