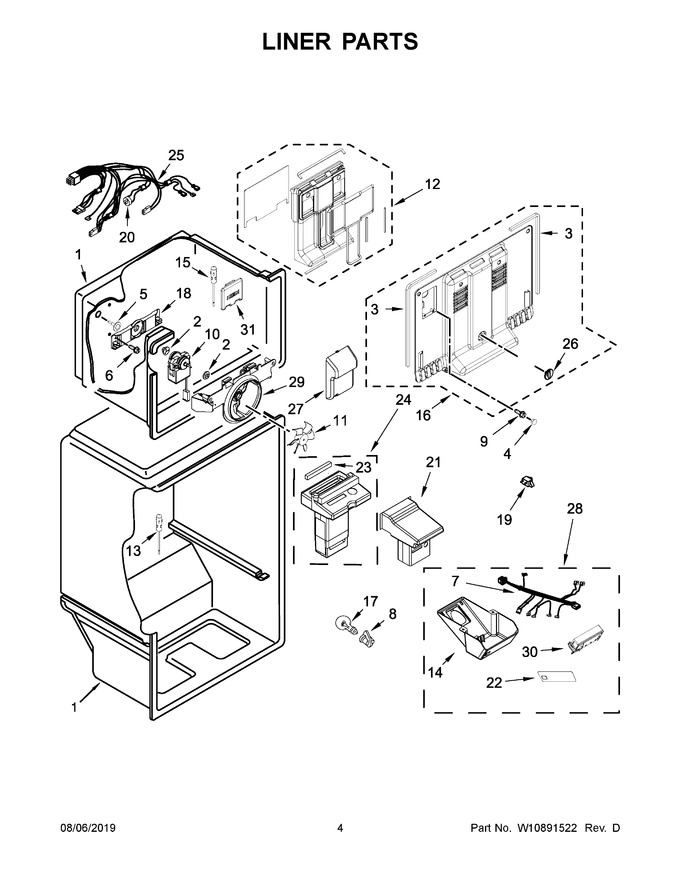

03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | W10579698 | Gasket, Evaporator Cover |
|
$ 22.30 | |||||
| 4 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 9.88 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | W11203361 | Wire Assembly, Control Box |
|
- | |||||
| 8 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 106.16 | |||||
| 9 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 98.07 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 107.61 | ||||
| 12 | W11666272 | Assembly, Evaporator Plenum (Replaces: W10813581) |
|
- | |||||
| 13 | W11724692 | Thermistor, Refrigerator (Replaces: W10452402) |
|
Immediately | $ 33.60 | ||||
| 14 | W10569265 | Assembly, Control Box |
|
$ 102.11 | |||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 16 | W10875836 | Cover, Evaporator |
|
- | |||||
| 17 | W11216993 | Lamp, Led (Replaces: W11125625) |
|
Immediately | $ 52.46 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 75.44 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | N/P | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 21 | W11208347 | Duct, Air (Replaces: W10570941) |
|
$ 98.44 | |||||
| 22 | W11131816 | Overlay |
|
- | |||||
| 23 | W10702120 | Gasket, Air Diffuser |
|
- | |||||
| 24 | W11199204 | Assembly, Air Diffuser (Replaces: W10570939) |
|
Immediately | $ 104.48 | ||||
| 25 | W11502499 | Assembly, Evaporator Fan Wire (includes Thermal Fuse) (Replaces: W10646206) |
|
$ 92.20 | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 91.85 | |||||
| 27 | WPW10339203 | Cover, Water Tube (Replaces: W10339203) |
|
$ 7.55 | |||||
| 28 | W11371382 | Electronic, Control (Replaces: W11207400) |
|
Immediately | $ 248.93 | ||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | W11387533 | Control, Electronic (Replaces: W11176897) |
|
$ 422.98 | |||||
| 31 | 2321148 | Housing, Thermistor |
|
- |
