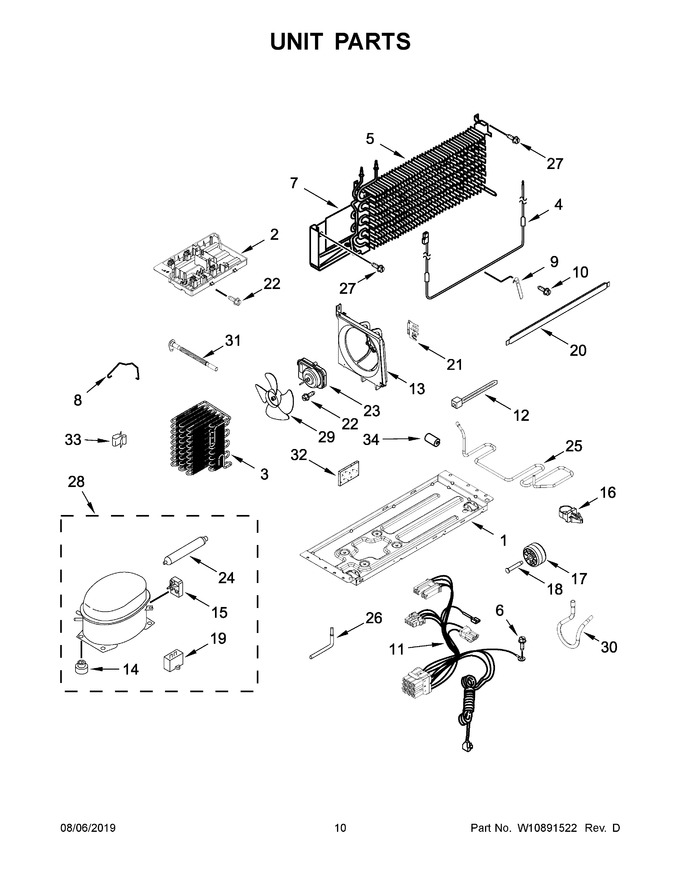

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10573847 | Support Plate, Compressor |
|
Immediately | $ 148.66 | ||||
| 2 | W10565417 | Tray, Evaporator |
|
$ 38.36 | |||||
| 3 | W11685315 | Condenser (Replaces: W10487115) |
|
Immediately | $ 102.81 | ||||
| 4 | W11220371 | Heater, Defrost (Replaces: W10570573) |
|
$ 151.82 | |||||
| 5 | W10836706 | Assembly, Evaporator (Replaces: W10570565) |
|
Immediately | $ 287.38 | ||||
| 6 | 8533919 | Screw |
|
- | |||||
| 7 | W10570572 | Shield, Heat |
|
$ 32.79 | |||||
| 8 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 9 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 20.12 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 11 | W11677726 | Harness, Unit (Replaces: W11238411) |
|
$ 74.55 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 13 | WPW10570380 | Scroll, Fan (Replaces: W10570380) |
|
$ 79.76 | |||||
| 14 | WP2163786 | Grommet (Replaces: 2222084) |
|
$ 8.36 | |||||
| 15 | WPW10448874 | Device, Start (Replaces: W10448874) |
|
Immediately | $ 136.08 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | W11179313 | Capacitor (Replaces: W10590088) |
|
$ 122.39 | |||||
| 20 | W10300902 | Cover, Heater |
|
$ 29.57 | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 23.44 | |||||
| 22 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 24 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 57.13 | ||||
| 25 | W11722672 | Assembly, Precooler (Replaces: W10727428) |
|
$ 280.25 | |||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 28 | W10233960 | Compressor (Replaces: W10575980) |
|
Immediately | $ 539.34 | ||||
| 29 | W11204896 | Blade, Fan (Replaces: W10675036) |
|
$ 101.79 | |||||
| 30 | W11396724 | Tube, Suction (Replaces: W10830003) |
|
- | |||||
| 31 | W10582029 | Tube, Drain |
|
- | |||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 33 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 34 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 4.2 Oz (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 134.49 |
